Celigo’s API Management allows you to expose your company’s data, services, and assets. It enables business systems to connect, accelerates partner connectivity, increases business agility, and spurs product innovation. API management enables developers and organizations to secure, scale, govern, analyze, and monetize these APIs. Celigo’s API Management solution empowers you to extend your digital platform, forge new communication channels, and attract new customers.
It is an integrated component of the Celigo platform that helps you form the backbone of your API-led integration strategy. You can build an entirely new API using the platform's core features and push them to the API Management (APIM) console to customize and govern your endpoints before exposing them.
Celigo's API Management contains three major components:
-
APIM Console – allows API publishers to modify APIs, add policies, define plans, approve subscriptions, and monitor API usage metrics.
-
APIM Developer Portal – allows API consumers to discover APIs that may interest them, subscribe to APIs, and manage their ongoing subscriptions.
-
APIM Gateway – enforces the policies and other security controls applied to the API proxy interface.

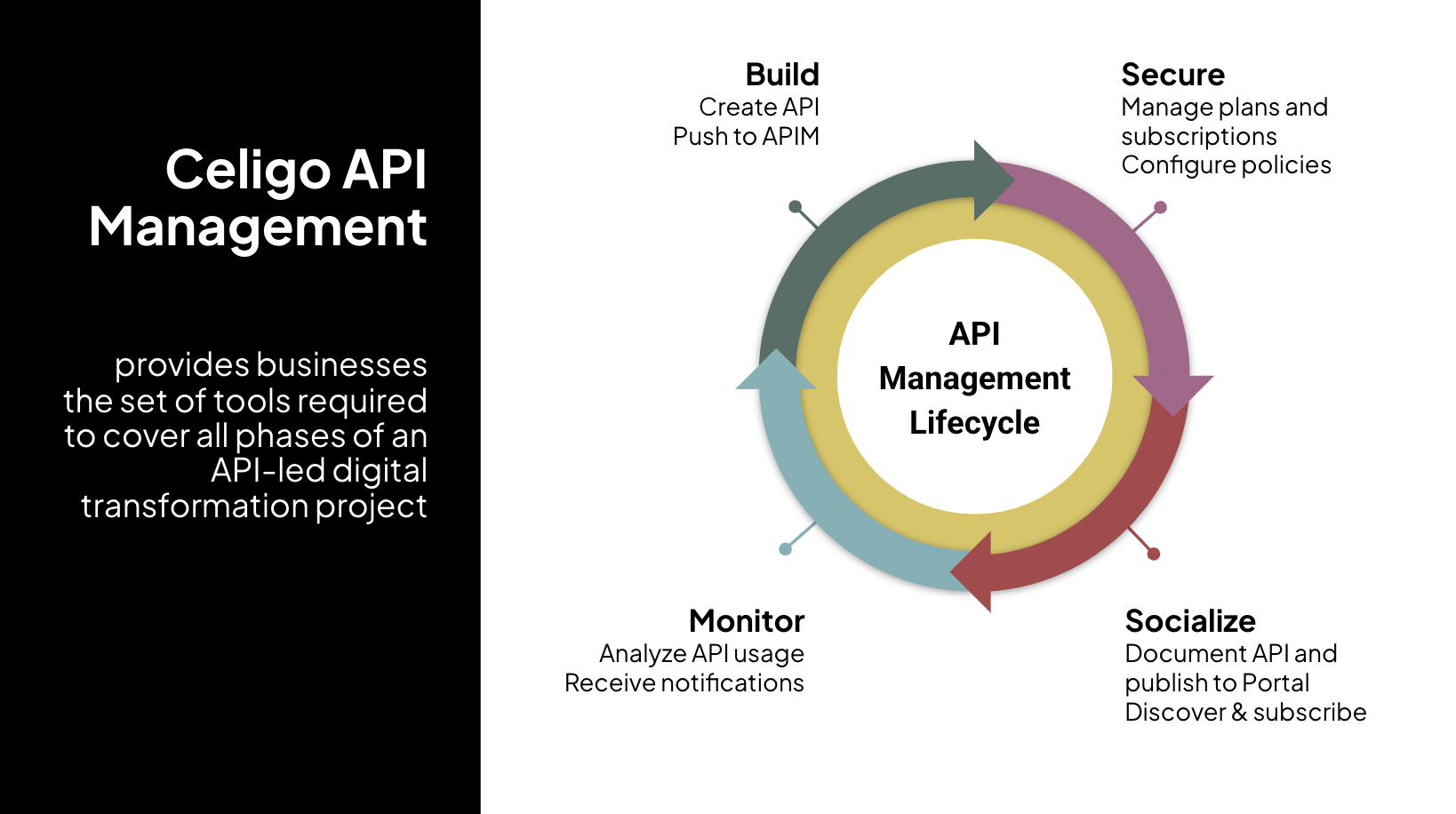

The Celigo API Management lifecycle provides the core features necessary for all phases of API Management, including:
-
Build – create, edit, and version APIs to make your organization’s data and processes available for reuse
-
Secure – manage and implement policies (authorization, rate-limiting, throttling, masking, etc.) to protect sensitive data and enhance system reliability and performance
-
Socialize – publish your APIs to a centralized and customizable portal for internal and/or external consumers to discover and subscribe
-
Monitor – analyze usage patterns, performance, and consumption to guide decision-making for your API initiatives
API publishers create and publish APIs in the Celigo platform for API consumers.
-
Build and publish APIs: Configure, implement, and publish APIs for consumers and application developers. The API builder and the APIM console allow publishers to configure every aspect of an API, from its policies to its plans and documentation. Publishers using the API Management console can use various authentication methods, including, but not limited to, JWT, OAuth 2.0, and keyless authentication.
-
Define API security and traffic shaping and provide routing information to backend endpoints: When a resource is managed through the APIM console, the required API gateway policies will be added by default. You can add more policies in the APIM console at → .
-
Expose APIs to the gateway: You can configure and enforce policies at the API gateway level to manage and control API traffic (e.g., using rate limiting), apply transformations to requests or responses, define logs and metrics, manage caches, etc. There are 40+ policies you can use to customize your API. Some commonly used policies are:
-
Rate Limiting
-
IP Filtering
-
XML to JSON
-
REST to SOAP
-
Mock
-
Cache
-
Transform header
-
Dynamic routing
-
HTTP Callout
-
-
Define metrics and analyze API usage: You can view prebuilt dashboards in the APIM console to monitor how well the APIs are performing and identify bottlenecks, latency issues, and other performance-related issues, which can help you optimize these APIs. You can also create custom dashboards around API performance, status, lifecycle stage, etc.
-
Document APIs: API publishers can document APIs in OpenAPI specification (OAS) format so that API consumers can have a clear and detailed explanation of how an API works and how to use it effectively. It will also reduce the learning curve for consumers, making it easier for them to adopt and integrate the API into their applications.
The Celigo platform will generate the OpenAPI specification (OAS) for your API (not including JavaScript API services). Specifications for multiple endpoints in an API will be grouped. Services pushed to the APIM console will be automatically configured with the required OAS. You can update the OAS in the APIM console at API → General → Documentation. API publishers can publish the documentation to the Developer Portal so consumers can discover, subscribe to, and adopt APIs.
Caution
Prerequisite elements are required to generate OAS for any APIs. JavaScript APIs are script-based resources with missing prerequisite elements; thus, the OAS will not be generated. If the OAS is generated, users must manually verify and update it in the APIM console.
-
Audit changes to your API program: View audit logs of all changes done in the APIM console to quickly identify who has changed the API configuration when the API breaks and to revert to the previous API version if required.
-
Manage your APIM notifications: Create notifications based on set alerts (e.g., API key expiry, new subscription, etc.) using one or more of the following options:
-
Portal notification to send messages to users logged in to the developer portal
-
Email notification to send messages to a specific list of email addresses
-
Webhook notification to send an HTTP POST request to a specific URL
-
API consumers are consuming the APIs that the API publisher has created.
-
Consume APIs and build new applications: Access and consume APIs an organization exposes in the Developer Portal to create new APIs and applications, thereby automating business processes.
Public and private APIs can be published in the developer portal for external and internal consumption. API consumers can use an identity provider to sign in to the developer portal and discover, subscribe, test, and consume the APIs. API requests from a client-based web application with a different URL will be allowed via the APIM gateway using CORS (Cross-origin resource sharing).
There are many benefits to creating, publishing, managing, and consuming APIs through Celigo's integrator.io. For most, the benefits come from customization and ease of use.
-
API security and access control – Implements authentication, authorization, and encryption mechanisms to secure APIs and ensure only authorized users can access sensitive data and services.
-
API performance analytics – Developers can create custom dashboards, reports, and analytics tools to monitor API usage.
-
API governance – Controls the rate at which different users or applications can access your APIs to prevent overload and ensure fair usage.
-
API documentation and Developer portal – Creates user-friendly documentation, interactive examples, and a developer portal to facilitate understanding and adoption of your APIs.
-
External developer access and partner integration – Allows third-party developers to access and utilize your organization's APIs to build applications and services that enhance your offerings. It also enables partners to integrate their systems with your APIs for more streamlined collaboration and data sharing.
-
Internal API consumption and integration – Enables different teams within your organization to use and share APIs to promote the reusability of services, reduce duplication of efforts, and accelerate development cycles.
-
Legacy system modernization – Exposes APIs for legacy systems, allowing them to be integrated with modern applications and services, avoiding the need for a complete system overhaul.
-
Monetization and revenue generation – Generates revenue by exposing certain APIs to external developers for a fee or subscription, creating new business models and opportunities.
