You can run only one instance of an agent on a machine. However, the same agent can be used to talk to multiple databases and applications on the same network as the agent.
For example, if you’re running SQL on two virtual machines (VM1 and VM2) and you’ve installed an integrator.io agent on VM1, your agent can access every SQL database on the same machine and any applications in the same network. Say you have an HTTP application running on VM2 and you want to create a connection. You can use the existing agent for that connection since VM1 and VM2 are on the same network.
So, as long as VM1 and VM2 are on the same network, you can access any application on both machines.
Contents
- Download and install the agent software
- Install the agent
- Enter agent token
- Optional: Run the agent as a Windows service
- Set up your connection
- FAQs and troubleshooting
Download and install the agent software
- Navigate to Resources → Agents.
- Click + Create agent.
- Name your agent and add a description.
- Click Save. Your agent now appears on the list.

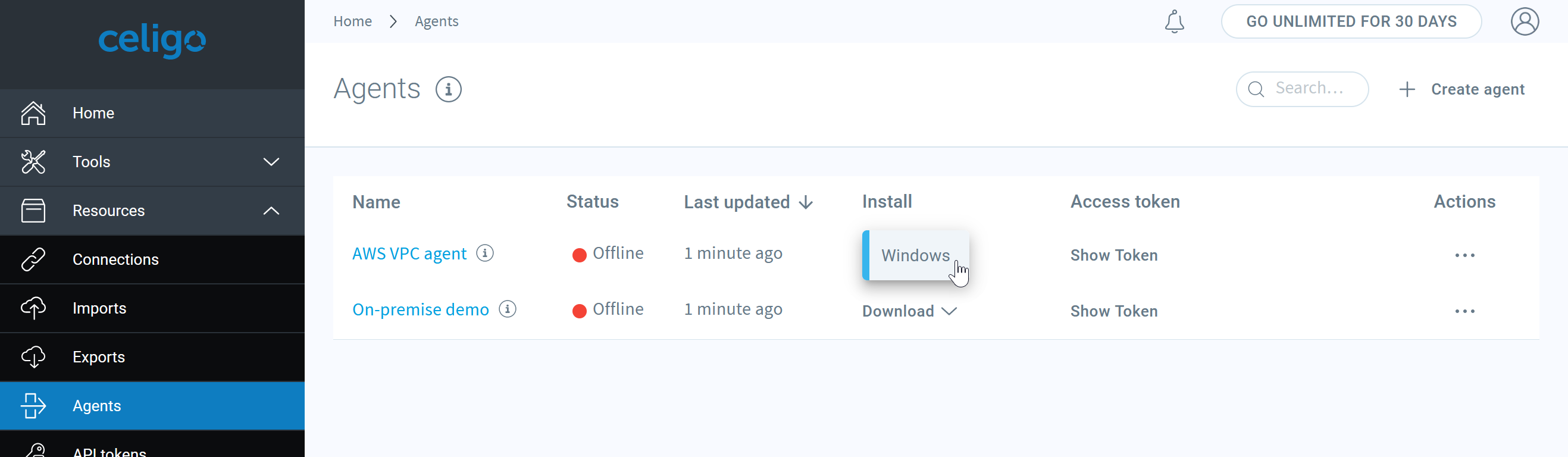

- From the Install column, click the Download option and choose the operating system (Windows is the only operating system (OS) available).
- After the downloaded, install and open the agent software.
Install the agent
If you downloaded the agent on the target computer, open the agent’s setup file, agent-windows.exe, from your browser and install it.
Otherwise, copy the downloaded file to the server, and double-click to launch setup.
Caution: Before starting an installation to upgrade the agent, disable any flows that rely on a running agent. The connections will not be able to use the agent’s access during the brief setup process, and the flows may fail.
The setup prompts you to choose installation options:
- Select whether to install the agent for all users or the currently logged-in profile.
- Click Install.
- Assuming you downloaded the agent directly from https://integrator.io or https://eu.integrator.io, give Windows permission to trust the downloaded executable and proceed.
- After installation, but before you’ve closed your executable, check Run agent before completing. Then, click Finish.
The Agent shortcut is added to your desktop and Windows programs, and the software opens to ask you for an integrator.io token.
Enter agent token
Communication between the agent and integrator.io is secured by an access token. To generate this token and provide it to the installed agent:

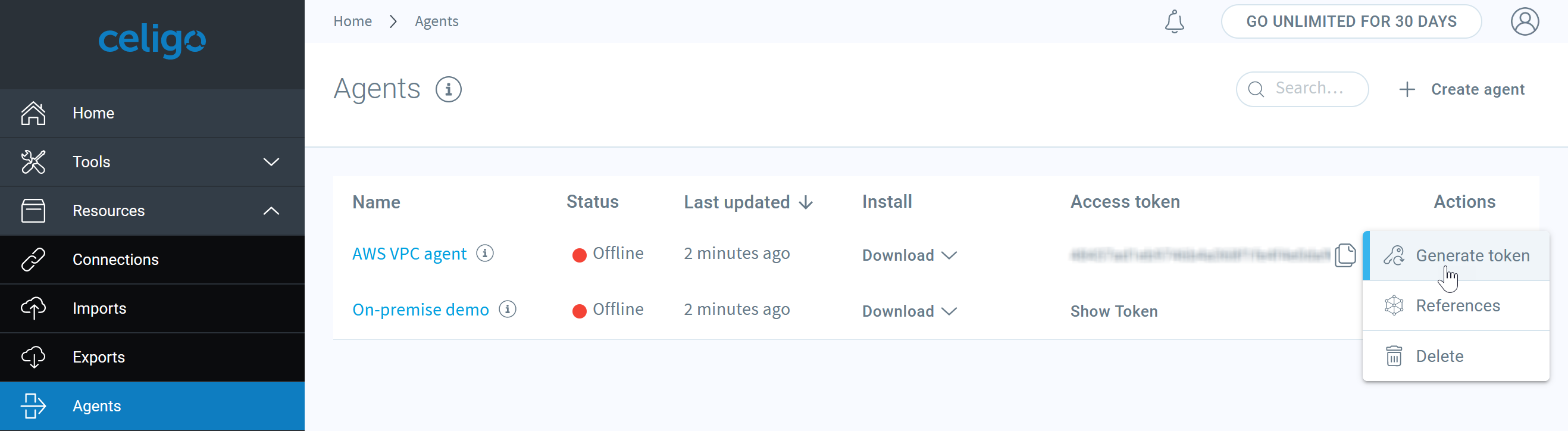

Important: Keep this token secure. Click Actions → Generate token to get a new access token and automatically revoke the previous token.
- Return to integrator.io and navigate to Resources → Agents.
- In the list of agents, click Show token.
- Click Copy (
) next to the unmasked access token to copy it to your clipboard.

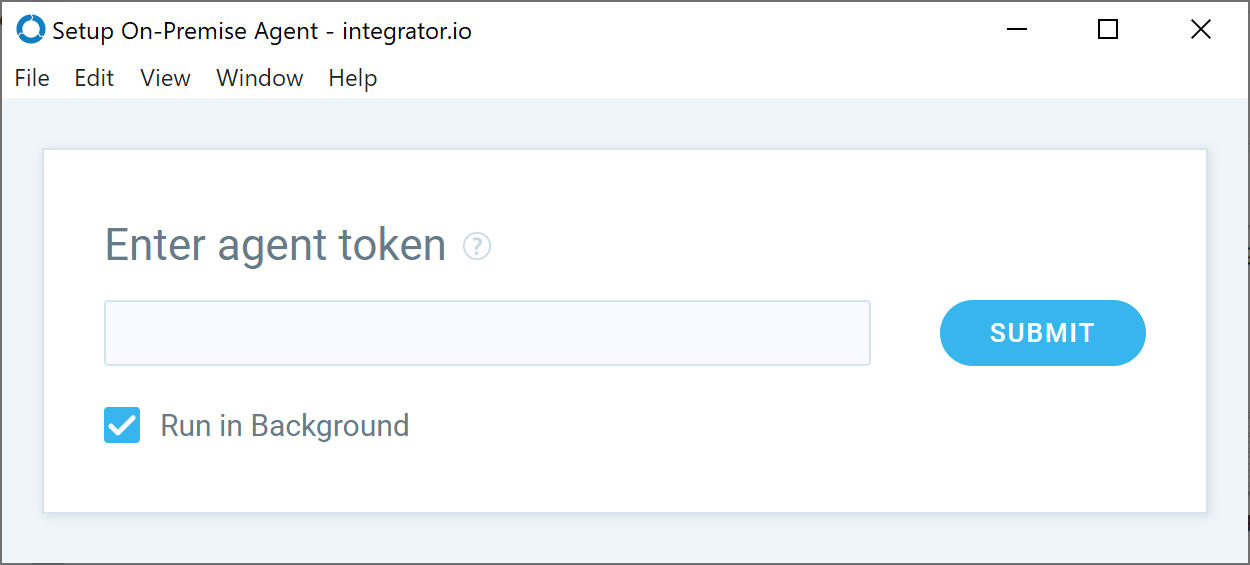

- In the agent software, enter the access token. The agent will automatically start communicating with integrator.io.

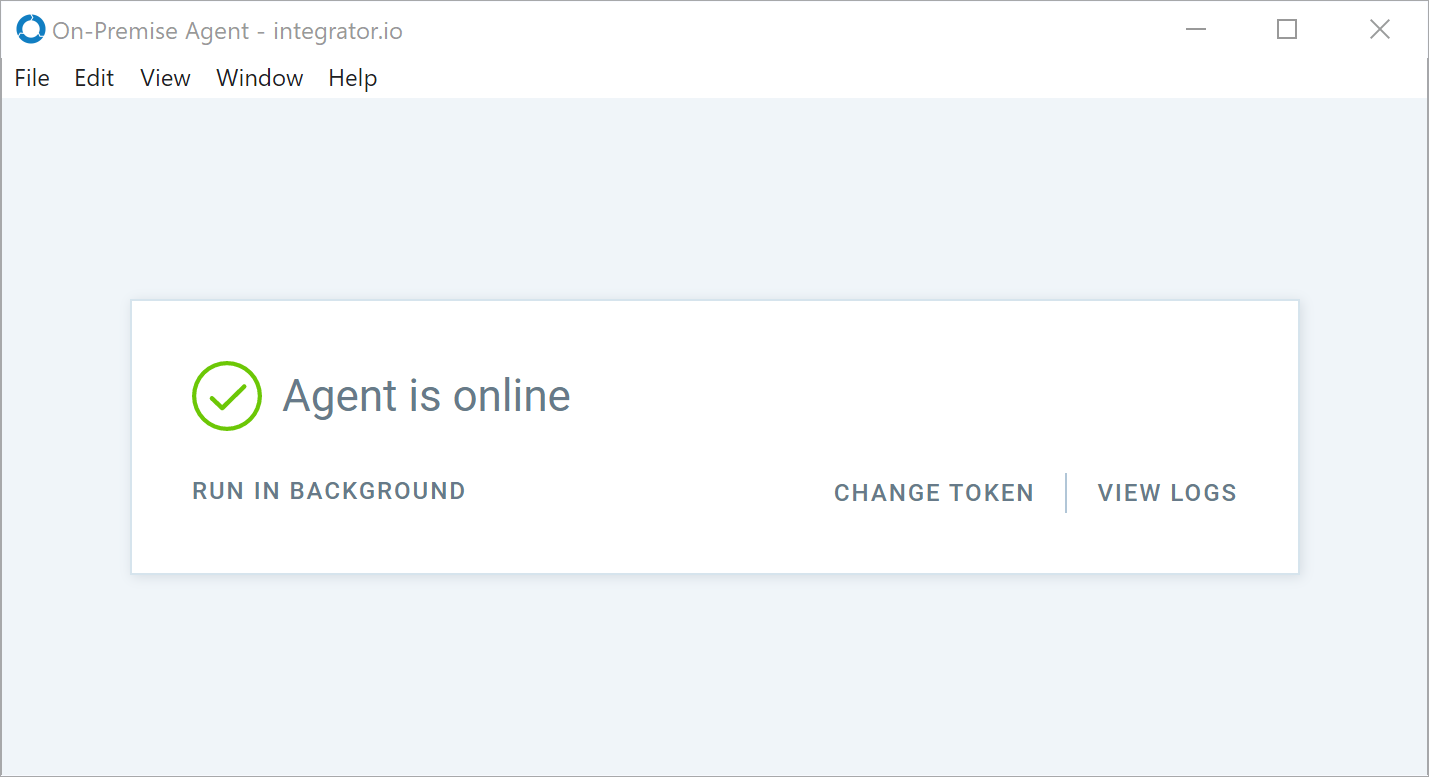

The agent should now be online, indicated with a green circle in the list. (Refresh the page if the view hasn’t updated.)
Optional: Run the agent as a Windows service
If you’ve followed the steps up to this point, the agent is running as a standard Windows executable. You can also run it as a Windows service to take advantage of the following benefits:
- The agent will run silently and continuously after installation and each time the system starts up
- The agent will run regardless of which user account is logged on
- As a service, the agent can be managed and monitored from remote systems
To run the agent as a Windows service:
- Double-click the Agent shortcut on your desktop.
- Choose Install service.

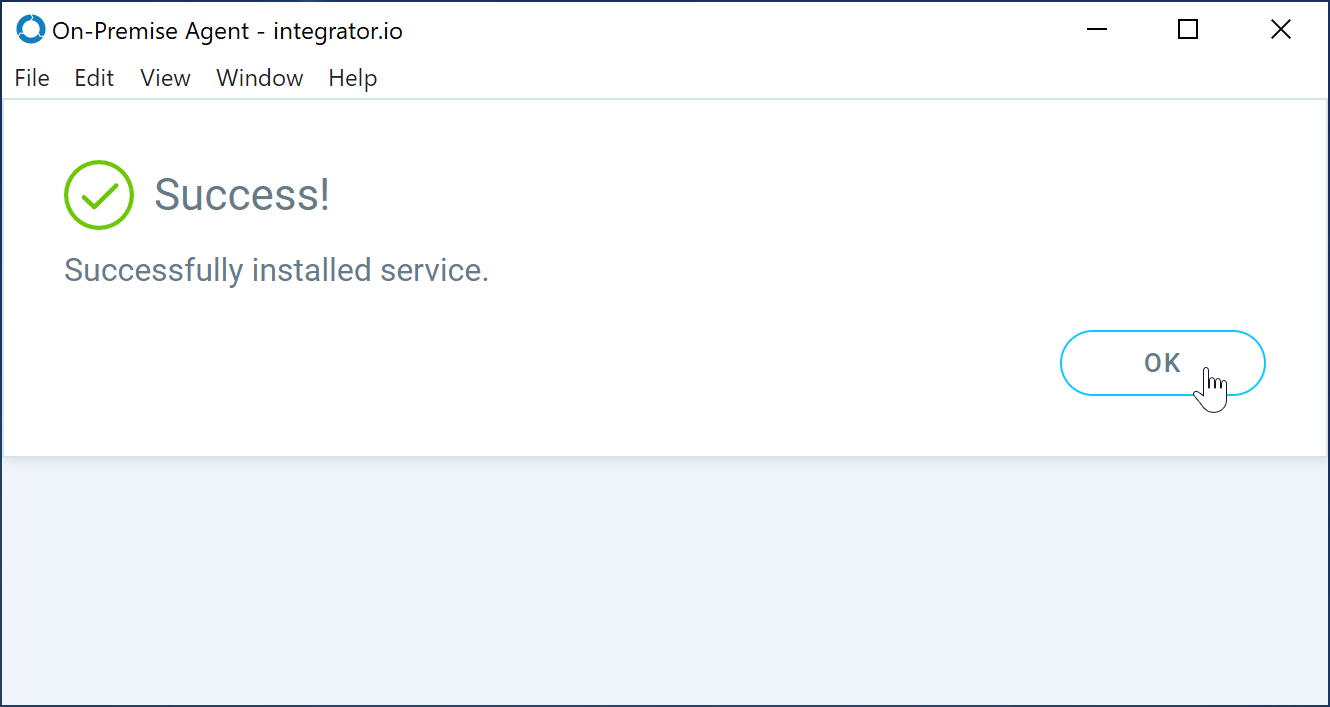

- The agent will confirm successful installation.
- Click OK to dismiss the user interface.

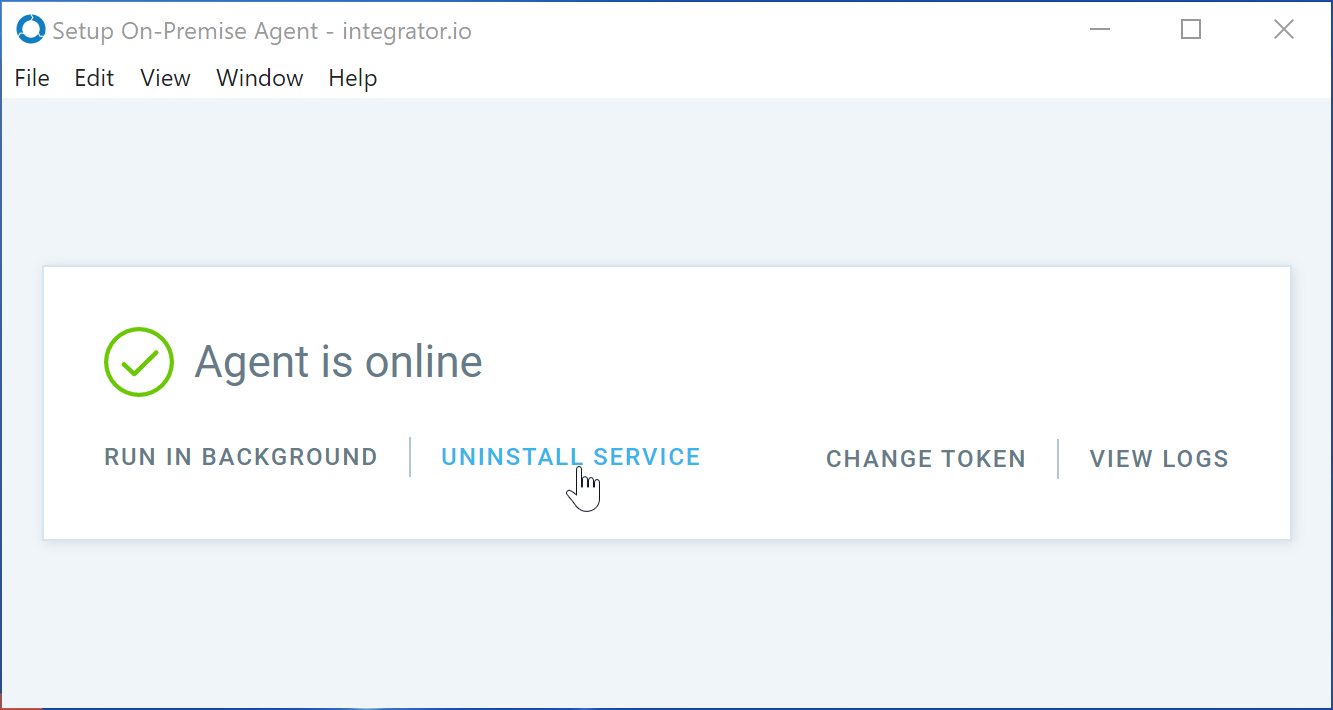

If you later decide that you prefer to run it as an executable, in the taskbar or in the background, double-click the Agent shortcut and click Uninstall service.
Set up your connection

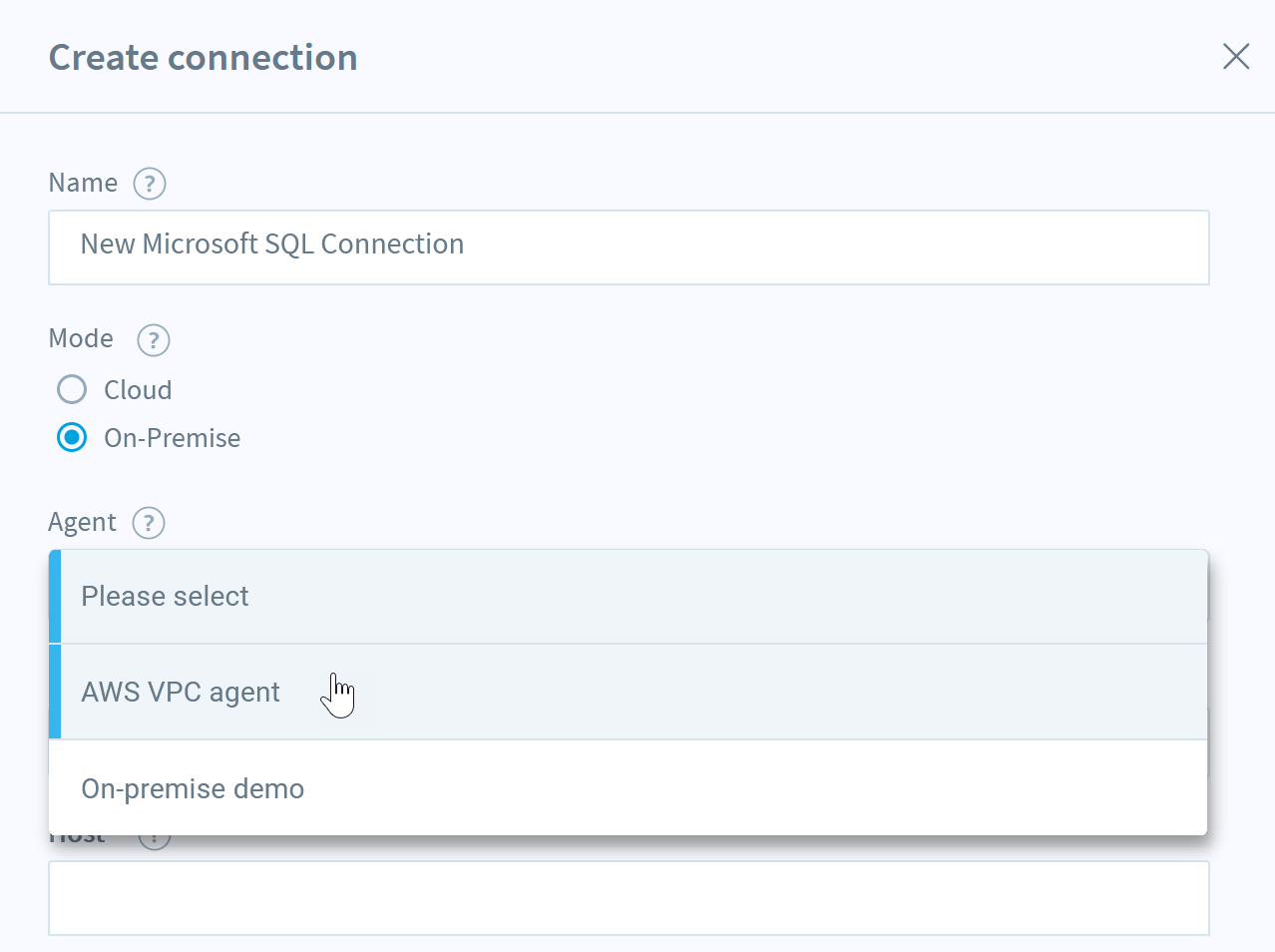

- Create a connection in integrator.io, either from Resources → Connections or by adding a new Source or Destination app in Flow Builder.
- For the Mode, choose On-premise (the default is Cloud).
- Choose your Agent from the drop-down list.
When creating an integrator.io connection that uses an on-premise agent, your settings will depend on whether the agent is installed on the same server as the application or database.
- Same server – set the Base URI to localhost or 127.0.0.1
- Different servers on the same network – Set the Base URI to the hostname or IP address of the system the application or database is running on.
You can run only one instance of an agent on a machine. However, the same agent can be used to talk to multiple databases and applications on the same network as the agent.
For example, if you’re running SQL on two virtual machines (VM1 and VM2) and you’ve installed an integrator.io agent on VM1, your agent can access every SQL database on the same machine and any applications in the same network. Say you have an HTTP application running on VM2 and you want to create a connection. You can use the existing agent for that connection since VM1 and VM2 are on the same network.
So, as long as VM1 and VM2 are on the same network, you can access any application on both machines.
Exports and imports
Exports and imports that leverage a connection through an on-premise agent do not need any special configuration, since the agent configuration is fully contained within the connection settings. Once the connection is established, you can build flows and integrations as normal.
FAQs and troubleshooting
Agent setup and configuration tips
How many instances of an agent can I set up?
You can run only one instance of the agent on a machine. However, the same agent can be used to allow integrator.io to talk to multiple databases and applications on the same network as the agent.
Does the on-premise agent need to be installed on the same machine as the system to be integrated?
Agents can be installed on any machine within the same network as the server running the system to be integrated.
How can I reopen the agent window and make changes, after it’s set to run in the background?
Most agent installations choose to Run in background, in which case the program, On-Premise Agent – integrator.io, is not visible in the Windows taskbar. To restore the agent user interface and make changes or view activity logs, double-click the program’s shortcut.
How can I keep my agent from stopping unexpectedly?
To stop your agent from closing unexpectedly, use a small and dedicated Windows server, then run the agent in the background. Make sure not to use that machine for anything else.
Which IP addresses does the agent use to communicate with integrator.io?
The agent uses several IP addresses to communicate with integrator.io. If you need to open up outbound traffic for an agent running in your environment:
- Whitelist the integrator.io IP addresses for the U.S. or the EU for the HTTPS protocol.
- Whitelist the agent-extension server IP addresses for the U.S. or the EU for the SSH protocol.
Audit logs
To view activity logs, double-click the program’s shortcut and click View logs in the desktop application, or you can browse the folder C:\users\<UserName>\AppData\Roaming\Agent.
Clone agents in sandbox and production environments
If the integrated sandbox and production systems are on the same network, then the best approach is to use the same on-premise agent for connections to both sandbox and production systems. If you choose to use separate agents for each environment, remember that they must be installed on different machines.
Comments
7 comments
Can you provide instructions on how to install this agent software on linux machine using command line. One of our use cases involves installing on a server with no UI access. Command line is the only option - can you provide any details?
How can you run the agent as a service?
I can answer both Rahul's and Damon's questions, based upon conversations I've had with support as of a couple months ago:
Rahul: Linux support is in Beta, and not currently supported specifically because it is a GUI app, not a command line app. There is no command line support.
Damon: Probably for a similar reason to the above, it's not currently supported to run the agent as a service.
... the agent appears to be intended to support development from your local machine, where you can restart at will, rather than used in production to circumvent firewall restrictions. I have found it to be only semi-reliable. Thankfully, I only need it for development purposes - in roughly 4 months, it's had to be restarted roughly twice.
In any event, to make this work *best* you'll need a windows machine with network access to the resource you're trying to connect to, and you'll need login access to that machine to be able to restart if it goes down.
I know that Celigo is actively working on many areas of their system, this may be one of them, so I suggest opening a new ticket with support or otherwise talking to your rep about what they're working on here if you need a better solution.
Appears Microsoft believes this agent download is malicious now.
Thanks, Damon Betlow. I'm glad you brought it to our attention (in-house we install agents regularly and skip past that warning along with the OS permission prompts on subsequent tests).
We're currently in the process of adding a higher code-signing certificate, so that Windows Defender will trust agent-windows.exe. Bottom line: if you've downloaded it directly from integrator.io, you're safe.
Where can I find the minimum machine requirements for running an Agent as a Service? We are planning to run this on a Windows virtual machine and want to allocate appropriate resources.
Hi, Sikich NetSuiteDev. I hope this broad guideline answers your question:
https://docs.celigo.com/hc/en-us/community/posts/360048137011/comments/360013339911
It's also very easy to install if you want to analyze the processing usage.
