Set up a connection to Pinecone

Pinecone is a vector database that makes it easy to build high-performance vector search applications.

Set up a connection

This video demonstrates creating a Pinecone connection.

After you start the connection, configure it in the Create connection panel and complete all of the required * authentication settings:

Setting	Instructions
Name your connection *	Enter a clear and distinguishable name. Throughout integrator.io imports and exports, you will have the option to choose this new connection. A unique identifier will prove helpful later when selecting it from a list of the connections in your account.
API type *	Choose the API type, either Vector operations or Index operations depending on the Pinecone API type you're connecting to. The settings then become specific to the selected API type.
Environment *	Enter your Pinecone account environment. For example, us-east1-gcp.
Index name project ID * (This setting is visible only when you select the vector operations API type)	Enter your index project ID. For example, if your index name is index-123456.svc.us-west-gcp.pinecone.io, then index-123456 is your project ID. How to retrieve the index project ID
API key *	Enter your Pinecone API key. Multiple layers of protection, including AES 256 encryption, are in place to keep your API key safe. When editing this connection, you must re-enter this value each time; it is stored only when the connection is saved and never displayed as text. How to retrieve the API key

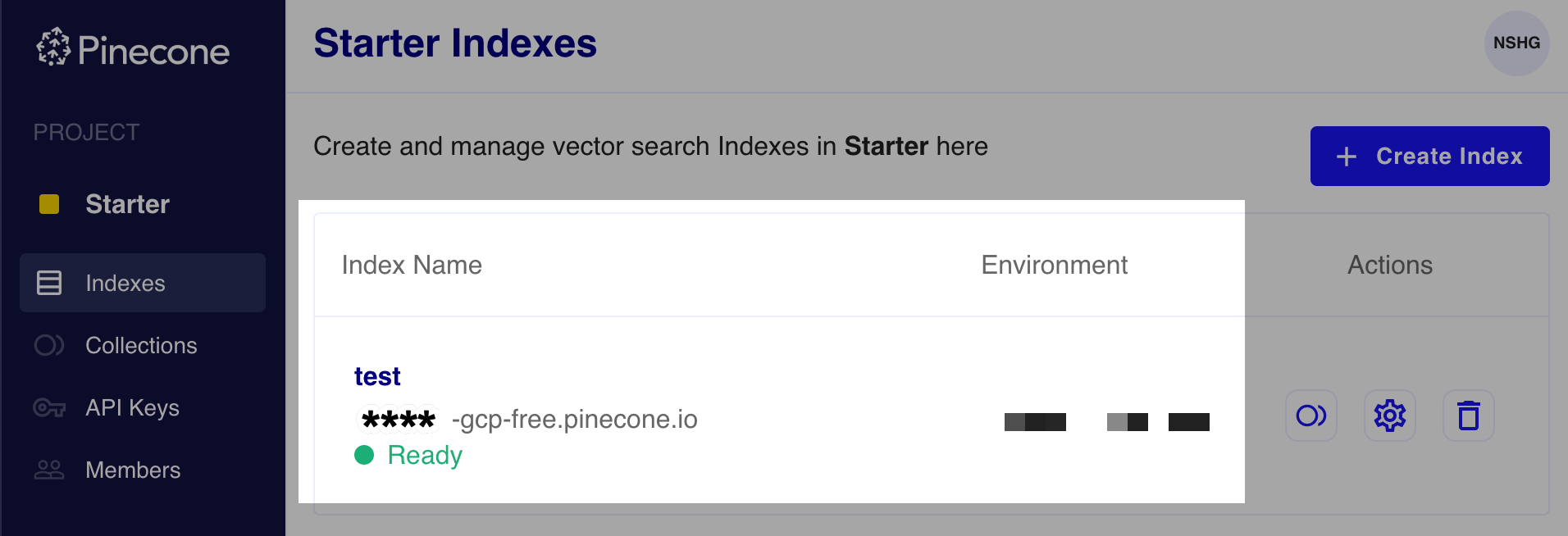

How to retrieve index ID

1. Sign in to your Pinecone account.
2. Navigate to Project > Indexes.
3. Click + Create index.
4. Enter the index Name and Dimension.
5. Select the Metric and Pod type.
6. Click Create index.

How to retrieve API key and environment

1. Sign in to your Pinecone account.
2. Navigate to Project > API keys.
3. Click + Create API key.
4. Enter API key Name.
5. Click Create key.
6. Copy API key.
7. Copy Environment.

Tip: This connector documentation describes only the settings shown for the Simple view. For the corresponding HTTP settings, see token auth universal connector documentation

Additional references

• Pinecone API guide
• Supported Pinecone APIs
