- A. Set up an Acumatica connection
- B. Supply required Acumatica account information
- C. Edit advanced Acumatica settings
- D. Test the connection
Start establishing a connection to Acumatica in either of the following ways:
- From the Resources menu, select Connections. Then, click + Create connection at the top right.
– or –
- While working in a new or existing integration, you can add an application to a flow simply by clicking Add source or Add destination/lookup.

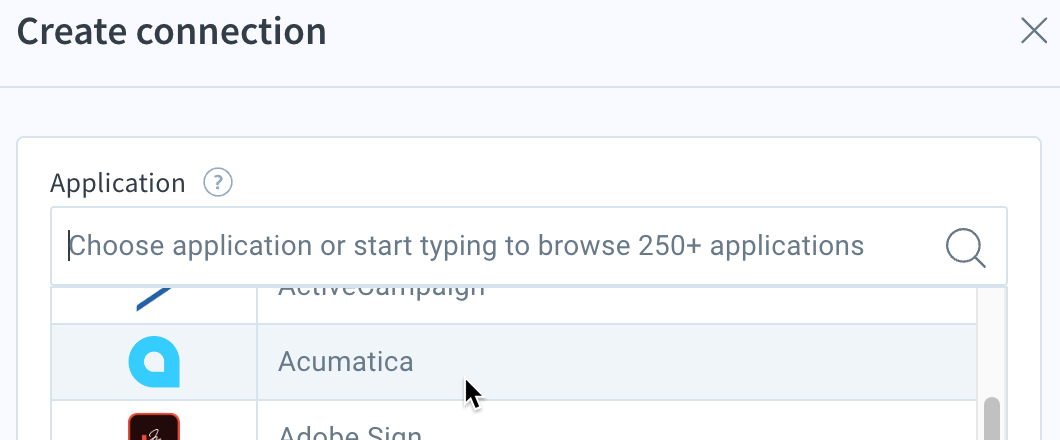

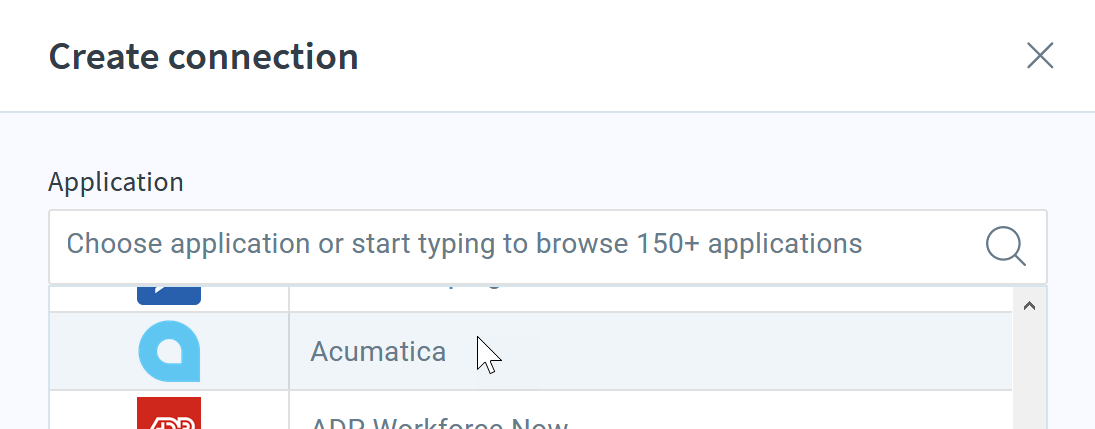

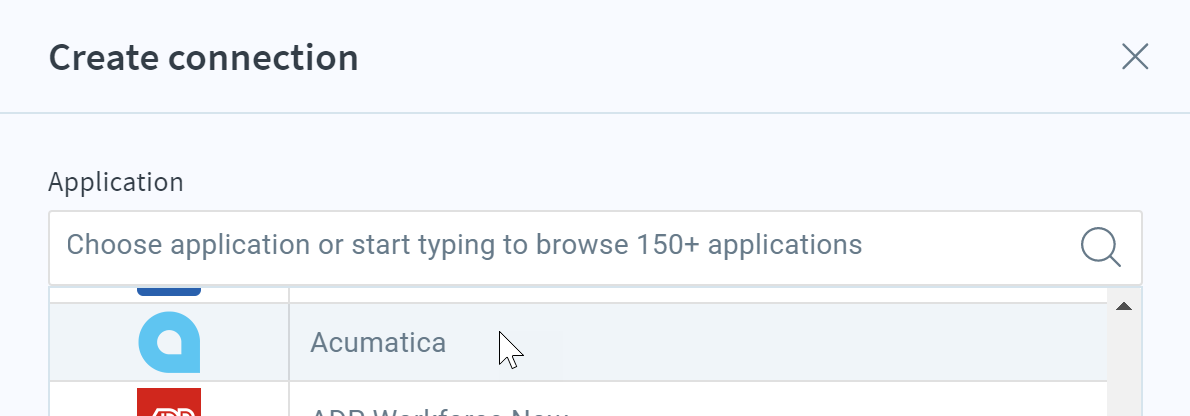

In the resulting Application list, select Acumatica.
The Create connection pane opens with required and advanced settings.
At this point, you’re presented with a series of options for providing Acumatica authentication.
Name (required): Provide a clear and distinguishable name. Throughout integrator.io imports and exports, you will have the option to choose this new connection, and a unique identifier will prove helpful later when selecting among a list of connections that you’ve created.
Application (required, disabled): A reminder of the app you’re editing.
Mode (required): Select one of the following options:
- Cloud to connect to a publicly accessible server application
- On-premise to connect to a server that is publicly inaccessible and has integrator.io agent installed on it
Agent (required, if On-premise selected for Mode; otherwise not displayed): Select an agent from the list. To connect to an on-premise application, integrator.io requires that an agent be installed on a networked computer. An agent is a small application that allows you to connect to data behind your firewall. When installing an agent, you will specify a unique access token, which then populates the Agent drop-down list. The installed agents connect to integrator.io and establish a reverse SSH tunnel, allowing secure communication without the need to whitelist integrator.io IP addresses in your firewall settings. A single agent can be used by multiple different connections.
Authentication type (required): Select OAuth 2.0 (the cookie option is described separately).
Instance URI (required): Enter the instance URI shown in your Acumatica account. For example, if
http://try.acumatica.com/isv/entity/Default/6.00.001 is the base URI, then the instance URI would be
Endpoint name (required): Enter the endpoint name found in your Acumatica account under Web service endpoints.
Endpoint version (required): Enter the endpoint version found in your Acumatica account under Web service endpoints.

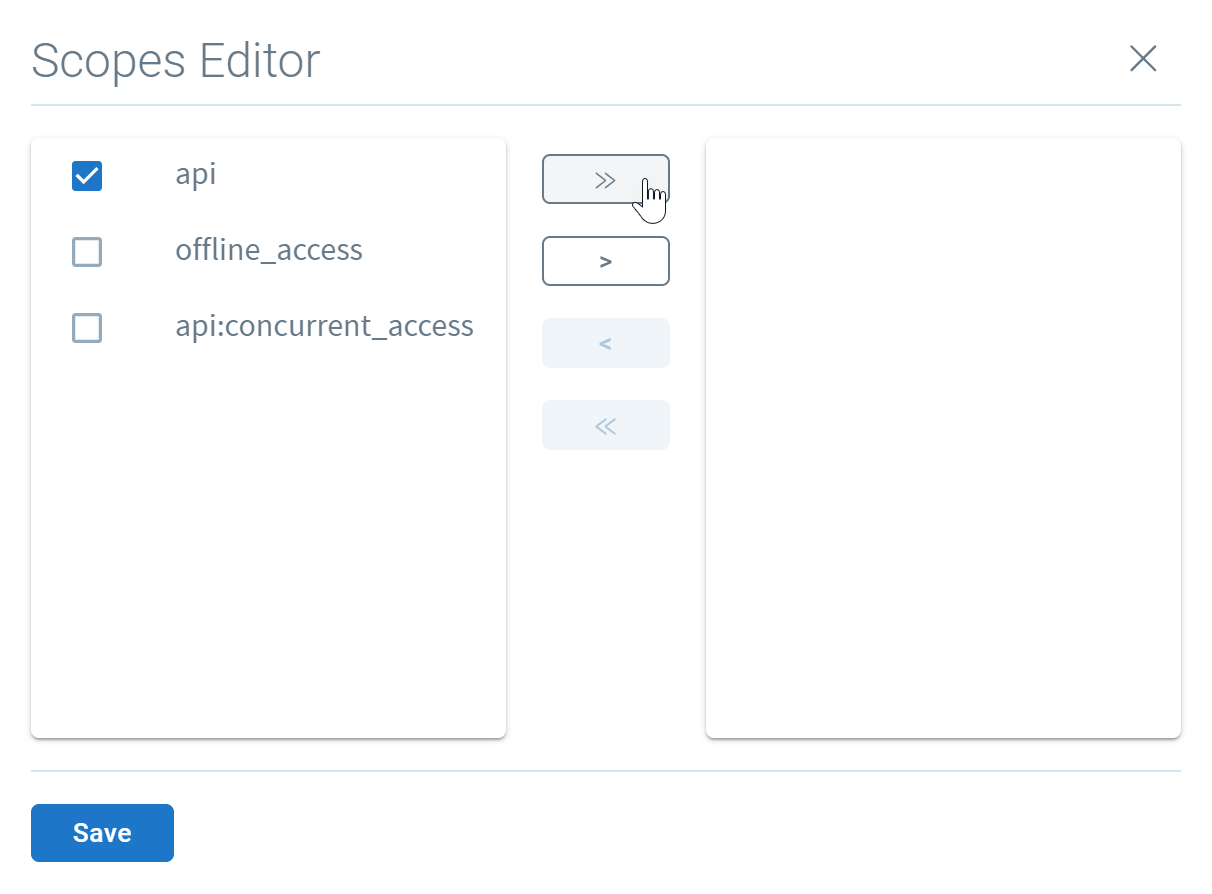

Configure scopes (required): Scopes are permissions that the Acumatica API defines to limit the access to your account. To select the scopes for this connection,
- Click the Configure scopes button.
- To access all of the scopes in the API, click the
– or –
Check the scopes you want to add, and click the button.
Configure your client id and secret (required): Check this box to reveal iClient options.
iClient (required): Select the iClient pair that stores the client ID and client secret provided to you by Acumatica. To add an iClient and configure your credentials, click the plus (+) button. Click the edit ( ) button to modify a selected iClient. Be sure to give the iClient a recognizable name for use in any other connections.
Callback URL (read-only): Copy this integrator.io callback URL to provide directions to Acumatica for where to go after authentication. (This URL should be whitelisted with the authorization server.)
Sign in to your Acumatica account, and search for Web service endpoints.

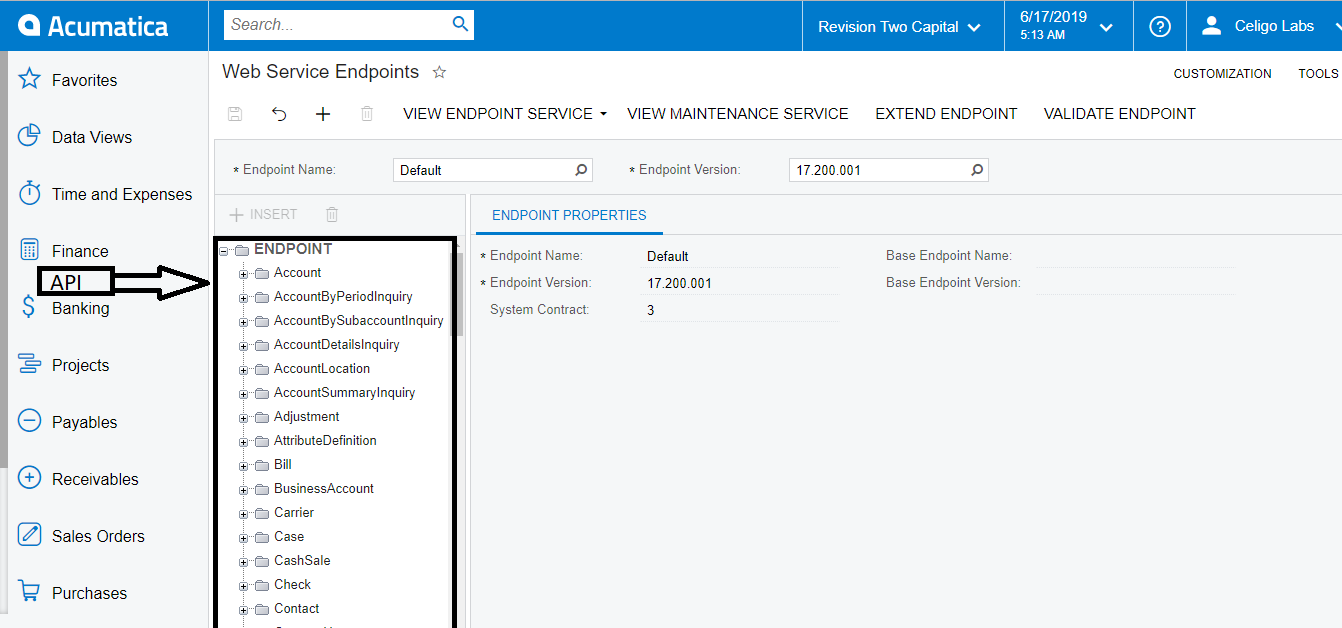

The search result displays the API in the Endpoints folder.

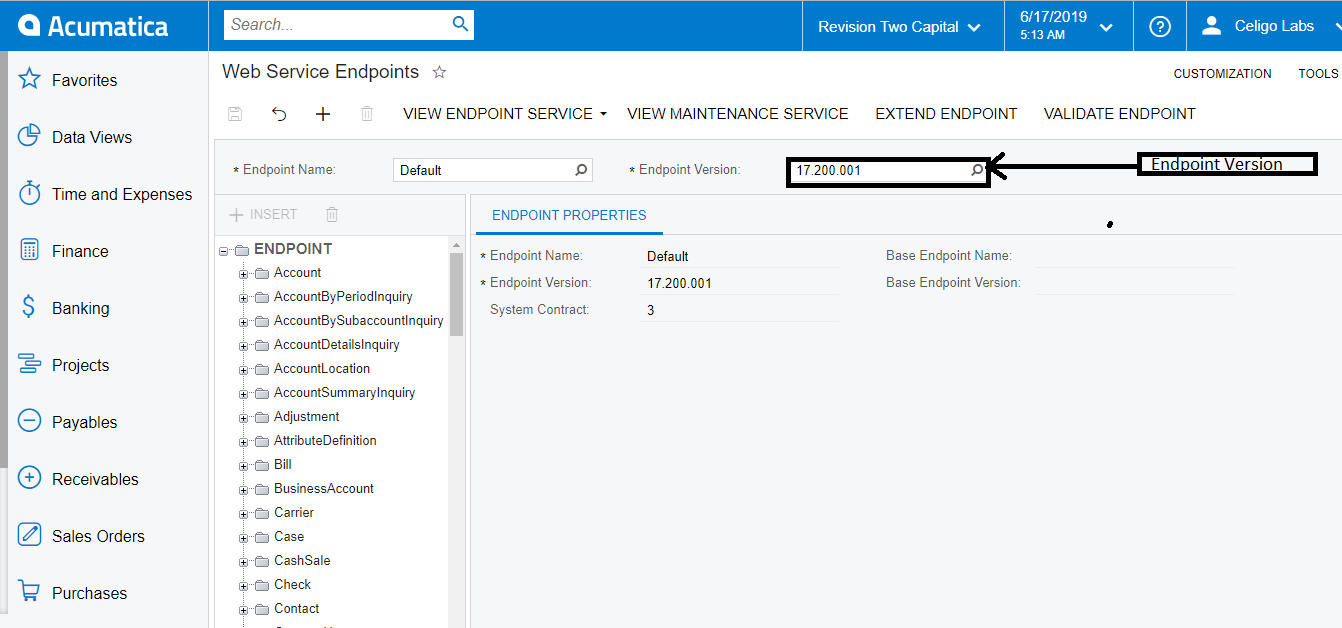

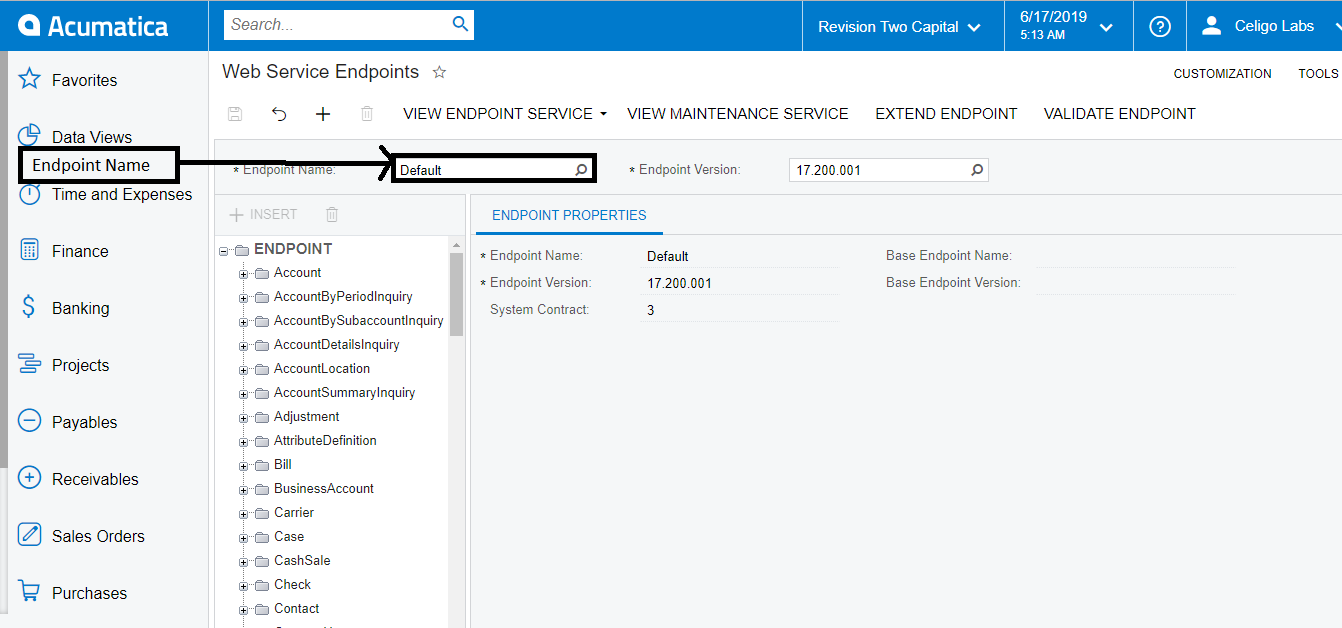

Notice that it also displays the endpoint name and version, required for your connection:

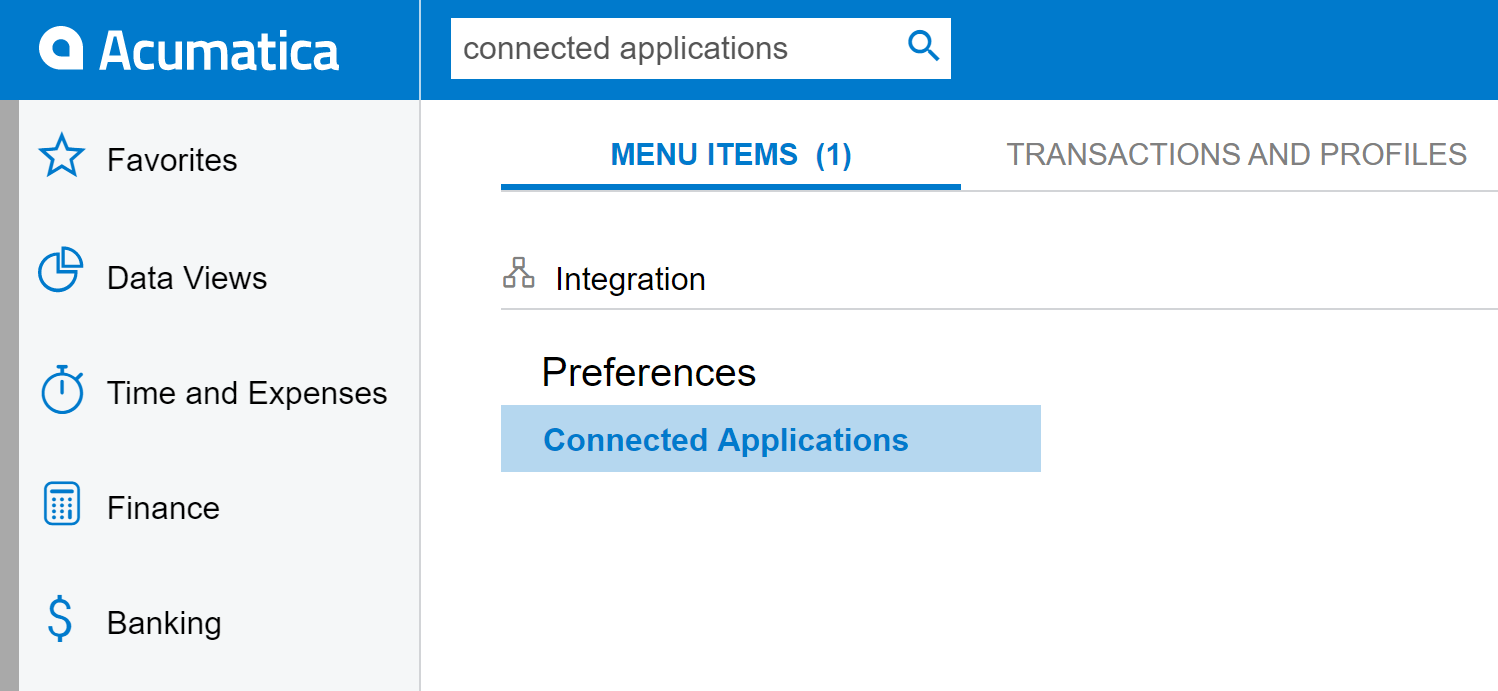

Sign in to your Acumatica account, and search for connected applications. Click the resulting menu item Integration > Preferences > Connected applications.

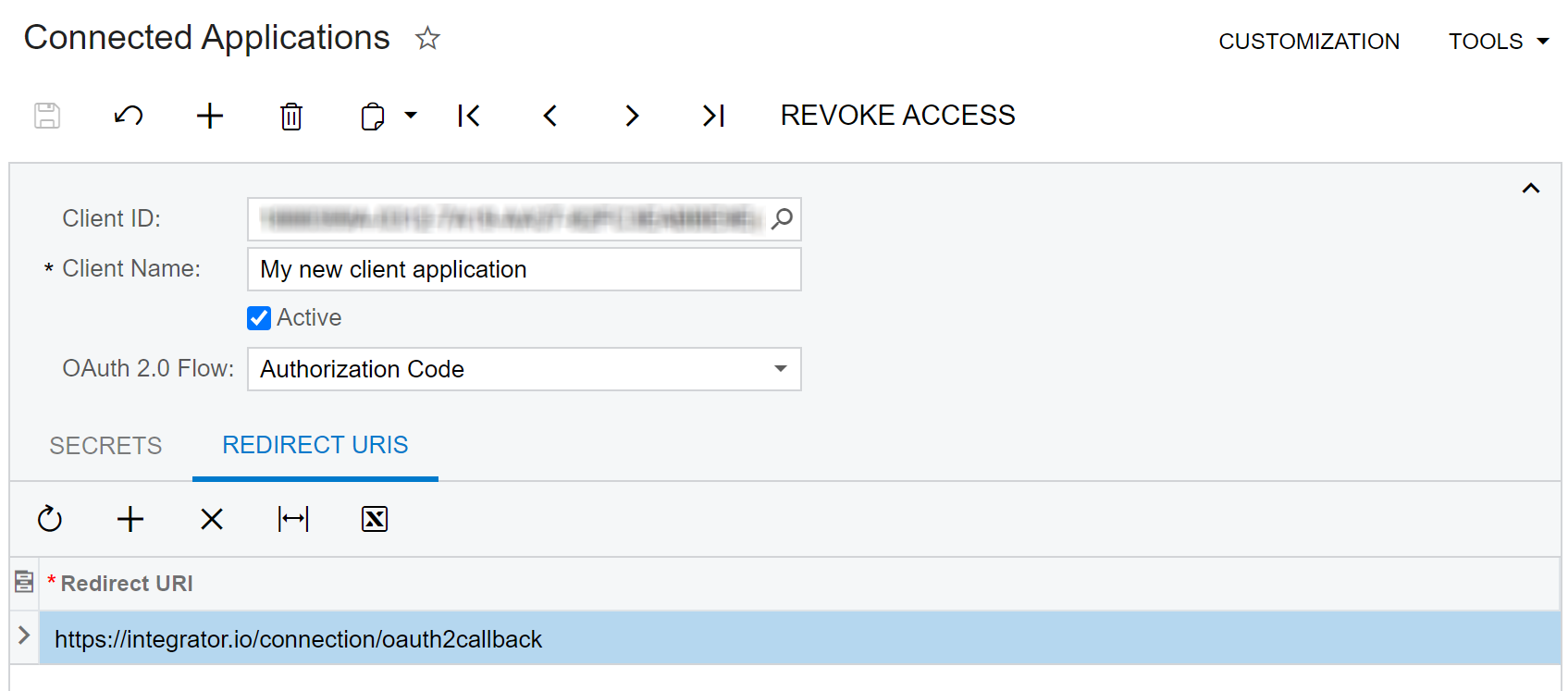

- Leave Client ID blank for a new app, or search for an existing app.
- Provide a Client name.
- Leave Active checked.
- Choose Authorization code for the OAuth 2.0 flow.

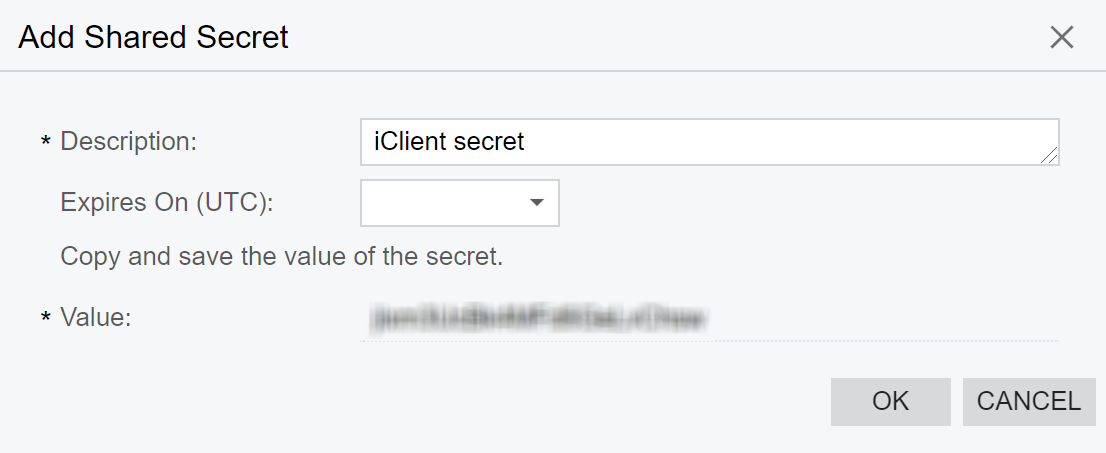

In the Secrets tab, click Add shared secret. Acumatica displays the value – just this once – for you to copy for the connection’s Client secret and also gives you the opportunity to name the secret and give it an expiration date. Click OK to return to the Connected applications page.

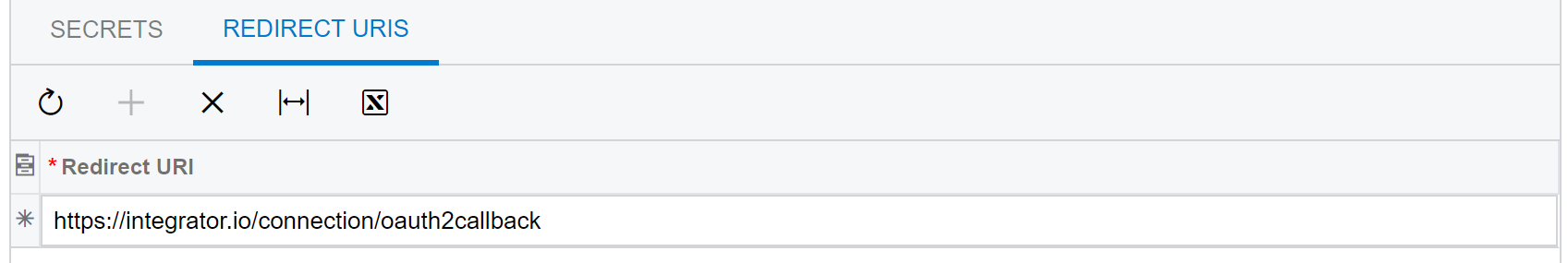

In the Redirect URIs tab, click the + button to add an entry. Paste the Callback URL from the Acumatica connection, above. Press the enter key to commit this URI.
Finally, click the save button (disk icon). Acumatica then assigns the Client ID, which you can copy for the iClient value.

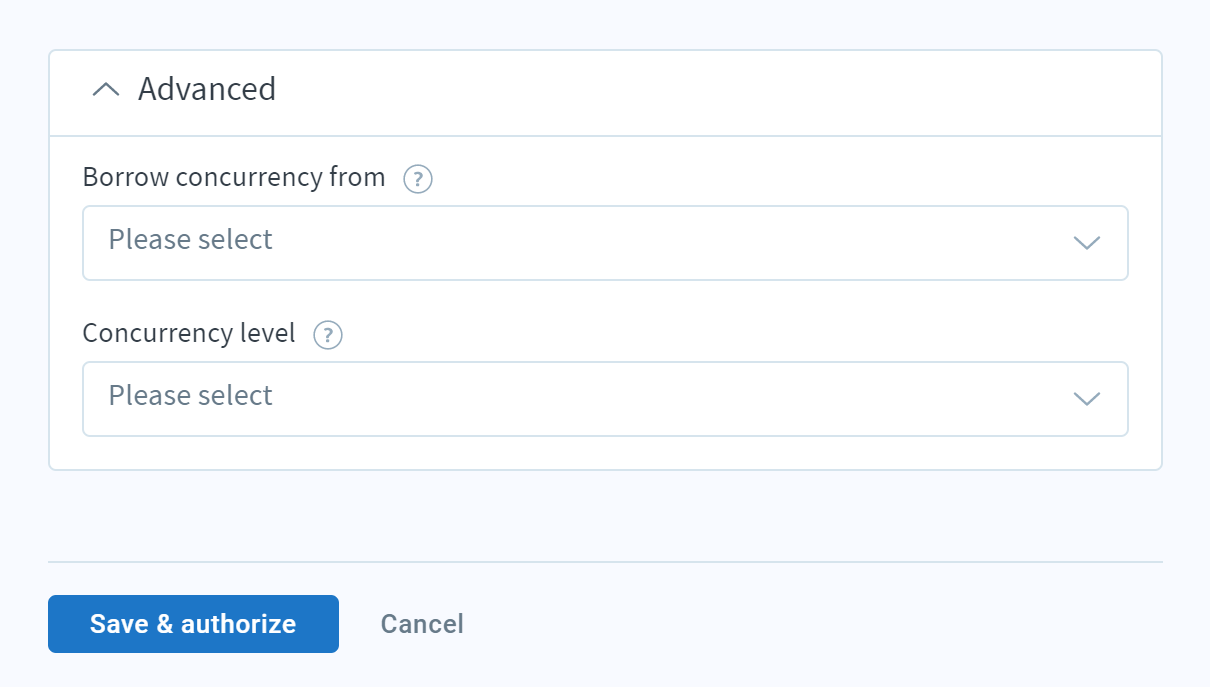

Before continuing, you have the opportunity to provide additional configuration information, if needed, for the Acumatica connection.
Once you have configured the Acumatica connection, you have the option to Save & authorize or Cancel your changes.

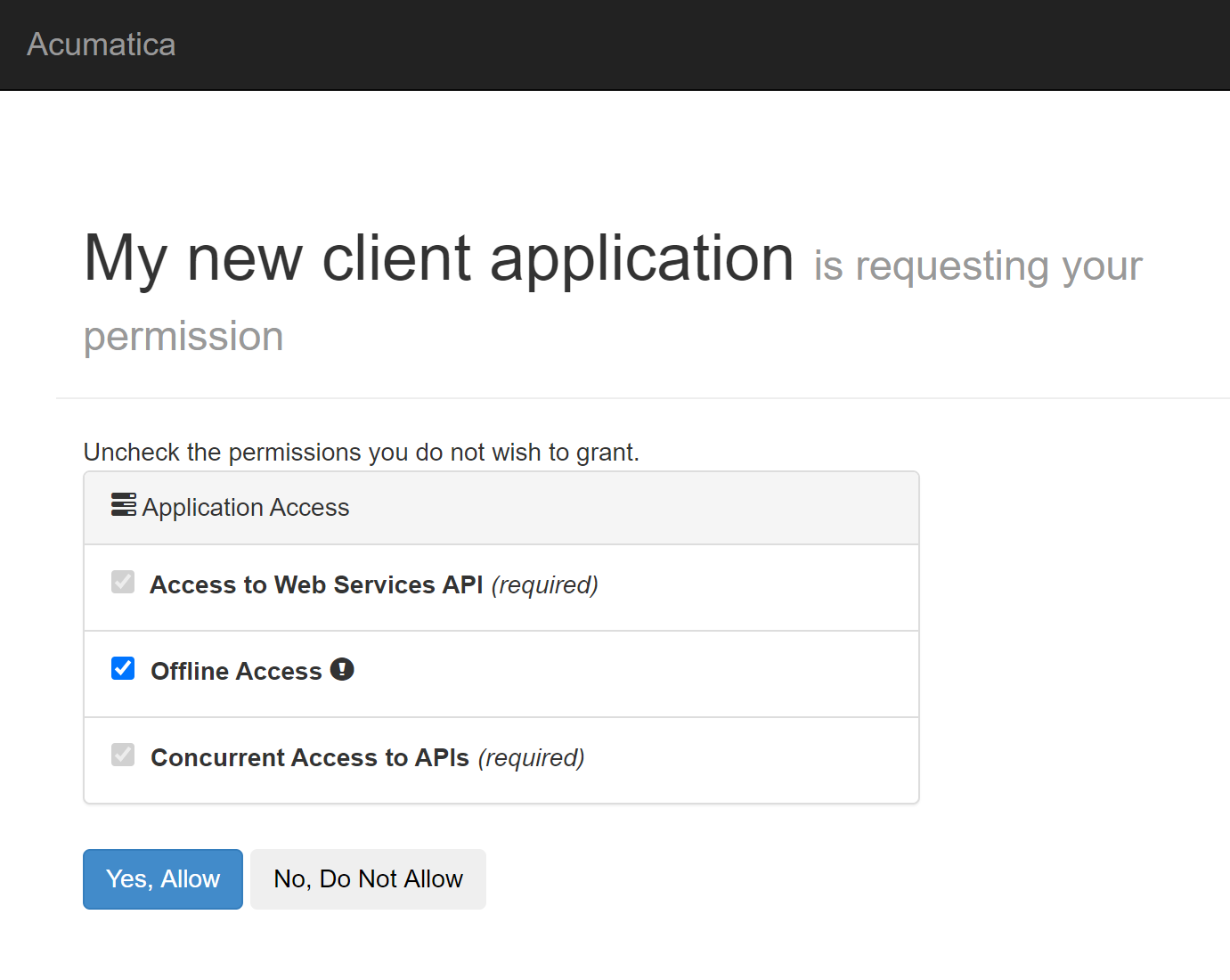

When you save the connection, Acumatica allows you to sign in, if there is no current session. It then prompts you to review and confirm the scopes. Click Yes, allow.
The new connection is now successfully added to your account. It will be applied to the current source or destination app, if you created it within a flow. Otherwise, you may proceed to register the connection with an integration.
