Set up a connection to ShipEngine

ShipEngine documentation: API Guide

Contents

• A. Set up a ShipEngine connection
• B. Supply required ShipEngine account information
  • How to retrieve ShipEngine API info
• C. Edit advanced ShipEngine Advanced settings
• D. Test and save

A. Set up a ShipEngine connection

Start establishing a connection to ShipEngine in either of the following ways:

• From the Resources menu, select Connections. Then, click + Create connection at the top right.
      – or –
• While working in a new or existing integration, you can add an application to a flow simply by clicking Add source or Add destination/lookup.

In the resulting Application list, select ShipEngine.

The Create connection pane opens with required and advanced settings.

B. Supply required ShipEngine account information

At this point, you’re presented with a series of options for providing ShipEngine authentication.

Name (required): Provide a clear and distinguishable name. Throughout integrator.io imports and exports, you will have the option to choose this new connection, and a unique identifier will prove helpful later when selecting among a list of connections that you’ve created.

Application (required, disabled): A reminder of the app you’re editing.

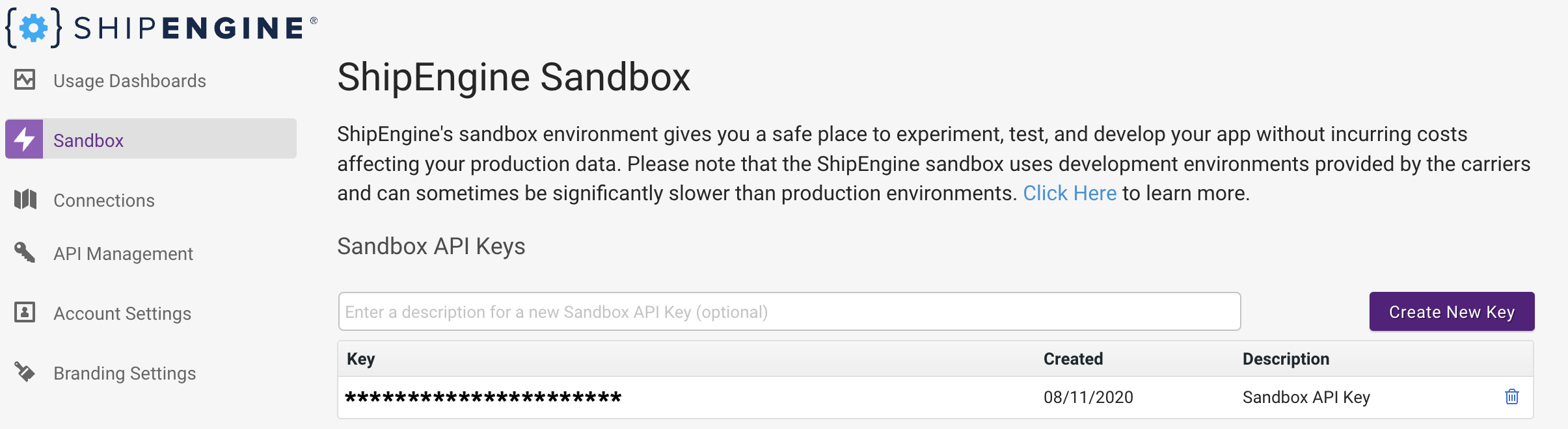

API key (required): Enter the API key for your ShipEngine app. Multiple layers of protection are in place, including AES 256 encryption, to keep your connection’s API key safe. When editing this form later, you must enter this value again; it is stored only for a saved connection.

C. Edit advanced ShipEngine Advanced settings

Before continuing, you have the opportunity to provide additional configuration information, if needed, for the ShipEngine connection.

Borrow concurrency from (optional): Select another connection from the list....

Concurrency level (optional): Up to 25 allowed....

D. Test the connection

Once you have configured the ShipEngine connection, you have a few options for continuing:

• Test – click this button to verify that your new connection is free of errors
• Test and save – click this button to test the connection, commit the new connection so that it will be available to all integrations for your account
• Cancel– click to exit without saving any new changes

When you select Test or Test and save , the connection is verified before continuing.

The new connection is now successfully added to your account. It will be applied to the current source or destination app, if you created it within a flow. Otherwise, you may proceed to register the connection with an integration.
