Set up a connection to SAP S/4HANA Cloud

Naga Sri Hari Gonaboyina
Updated

SAP S/4HANA Cloud is an ERP solution that enables organizations to manage business functions such as finance, human resources, procurement, and sales.

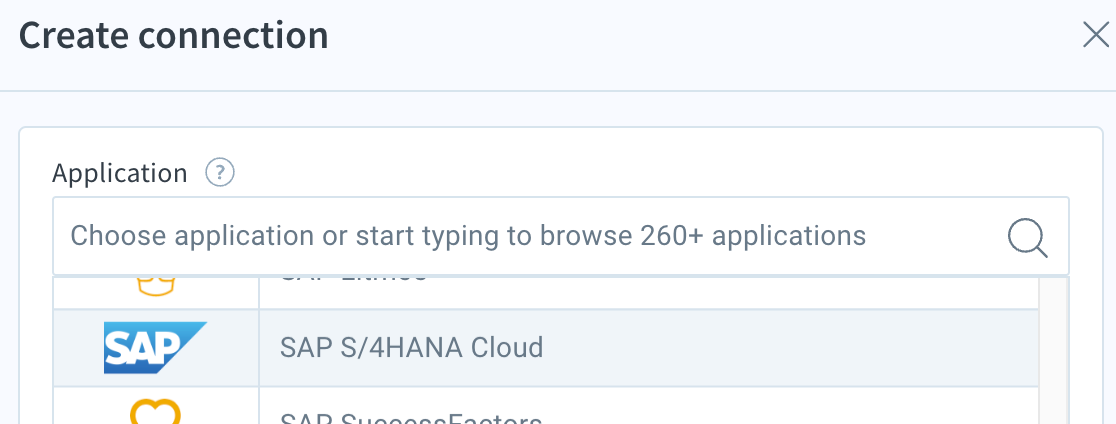

Set up a connection

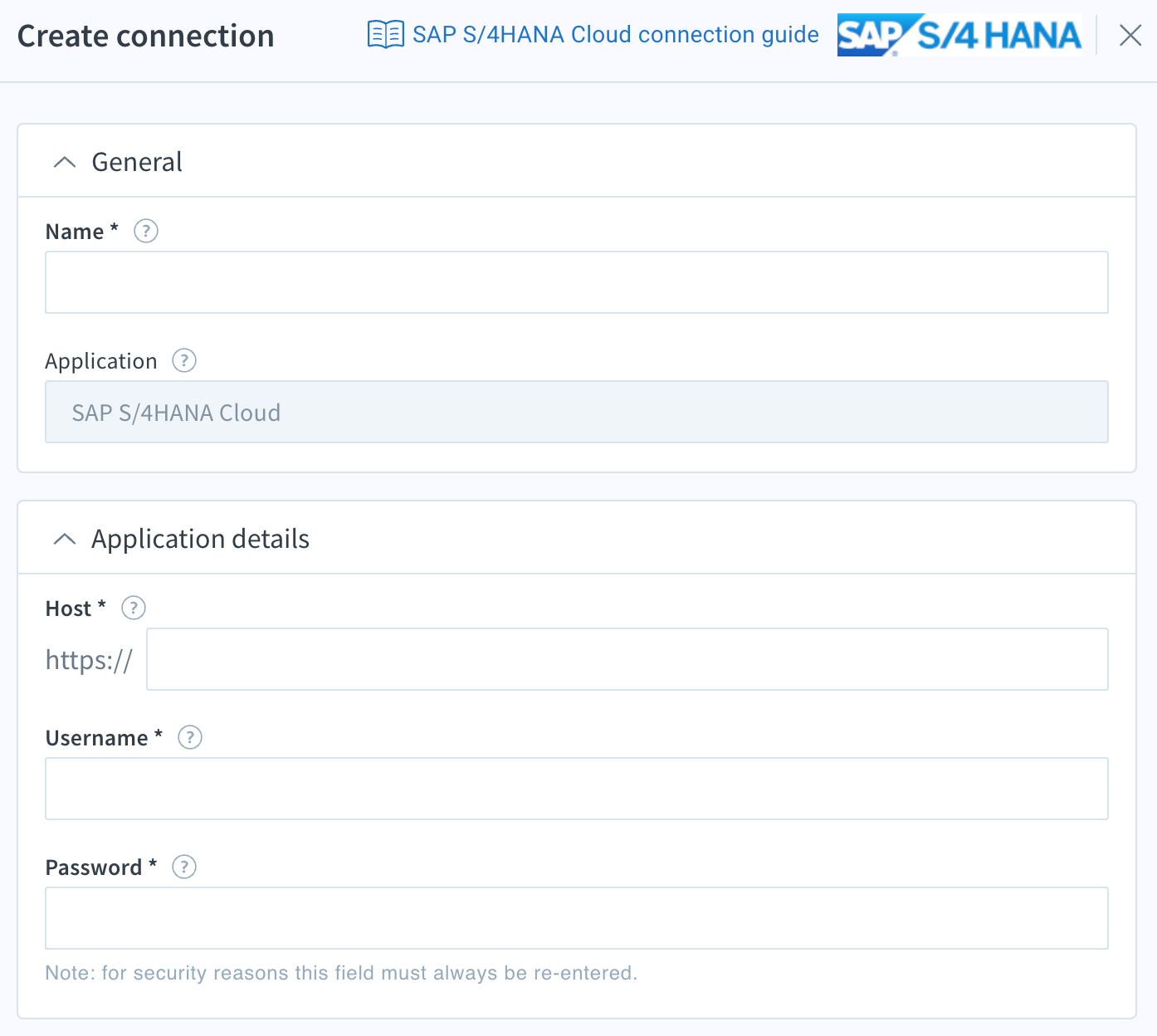

After you start the connection, configure it in the Create connection panel and complete all of the required * authentication settings:

Setting Instructions
Name your connection *

Enter a clear and distinguishable name.

Throughout integrator.io imports and exports, you will have the option to choose this new connection. A unique identifier will prove helpful later when selecting it from a list of the connections in your account.
API type *

Choose your SAP S/4HANA account API type:

  • Cloud public edition: Access standard, SAP-released business objects and services to integrate external applications securely using supported and stable APIs.
  • Cloud private edition: Access internal or custom SAP services to enable specific or advanced integrations that are not part of the public API set.
  • On-premise: Connect directly to your SAP S/4HANA on-premise system to integrate with internal processes and data within your organization’s infrastructure.
Cloud public edition API type:
API version *  Select your SAP S/4HANA account API version (v2 or v4).
Host *  Enter your SAP S/4HANA Cloud instance host. For example, if your instance is located at https://my1234.s4hana.cloud.sap, then my1234.s4hana.cloud.sap is the host.
Auth type * Select your SAP S/4HANA authentication type (Basic or OAuth 2.0).
Username *

Enter your SAP S/4HANA Cloud instance username. For more information, see Communication arrangement.

dataLoad.svg​​ How to retrieve the username
Password *

Enter your SAP S/4HANA Cloud instance password. For more information, see Communication arrangement.

Multiple layers of protection, including AES 256 encryption, are in place to keep your password safe. When editing this connection, you must re-enter this value each time; it is stored only when the connection is saved and never displayed as text.

dataLoad.svg​​ How to retrieve the password
OAuth 2.0 *

Select the OAuth 2.0 client that stores the client ID and client secret provided to you by SAP S/4HANA.

To add an OAuth 2.0 client and configure your credentials, click the plus ( + ) button. Click the edit (pencil.svg) button to modify a selected OAuth 2.0 client. For more information, see Create an OAuth 2.0 iClient resource.
Authorize base URL * Enter the OAuth authorize endpoint base URL. For example, https://my1234.s4hana.cloud.sap.
Token base URL * Enter the OAuth token endpoint base URL. For example, https://my1234-api.s4hana.cloud.sap.
Client ID * Enter your client ID provided by SAP S/4HANA.
Client secret * This setting will be automatically filled.
Cloud private edition API type:
API version *  Select your SAP S/4HANA account API version (v2 or v4).
Host *  Enter your SAP S/4HANA Cloud instance host. For example, if your instance is located at https://my1234.s4hana.cloud.sap, then my1234.s4hana.cloud.sap is the host.
Auth type * Select your SAP S/4HANA authentication type (Basic or OAuth 2.0).
Username *

Enter your SAP S/4HANA Cloud instance username. For more information, see Communication arrangement.

dataLoad.svg​​ How to retrieve the username
Password *

Enter your SAP S/4HANA Cloud instance password. For more information, see Communication arrangement.

Multiple layers of protection, including AES 256 encryption, are in place to keep your password safe. When editing this connection, you must re-enter this value each time; it is stored only when the connection is saved and never displayed as text.

dataLoad.svg​​ How to retrieve the password
OAuth 2.0 *

Select the OAuth 2.0 client that stores the client ID and client secret provided to you by SAP S/4HANA.

To add an OAuth 2.0 client and configure your credentials, click the plus ( + ) button. Click the edit (pencil.svg) button to modify a selected OAuth 2.0 client. For more information, see Create an OAuth 2.0 iClient resource.
Authorize base URL * Enter the OAuth authorize endpoint base URL. For example, https://my1234.s4hana.cloud.sap.
Token base URL * Enter the OAuth token endpoint base URL. For example, https://my1234-api.s4hana.cloud.sap.
Client ID * Enter your client ID provided by SAP S/4HANA.
Client secret * This setting will be automatically filled.
On-premise API type:
On-premise agent *

Select an on-premise agent from the list.

To connect to an on-premise application, integrator.io requires that an agent be installed on a networked computer. For more information see On-premise agent.
Host *  Enter your SAP S/4HANA Cloud instance host. For example, if your instance is located at 192.168.1.119 with the port 44300, then 192.168.1.119:44300 is the host.
Username *

Enter your SAP S/4HANA Cloud instance username. For more information, see Communication arrangement.

dataLoad.svg​​ How to retrieve the username
Password *

Enter your SAP S/4HANA Cloud instance password. For more information, see Communication arrangement.

Multiple layers of protection, including AES 256 encryption, are in place to keep your password safe. When editing this connection, you must re-enter this value each time; it is stored only when the connection is saved and never displayed as text.

dataLoad.svg​​ How to retrieve the password

How to retrieve the username and password

  1. Sign in to your SAP S/4HANA Cloud account.
  2. Navigate to Communication management > Maintain communication users.
  3. Click New.
  4. Enter the Username.
  5. Enter a Description.
  6. Enter the Password.
  7. Click Create.
  8. Copy the Username.
  9. Copy the Password.
  10. Click Save.
