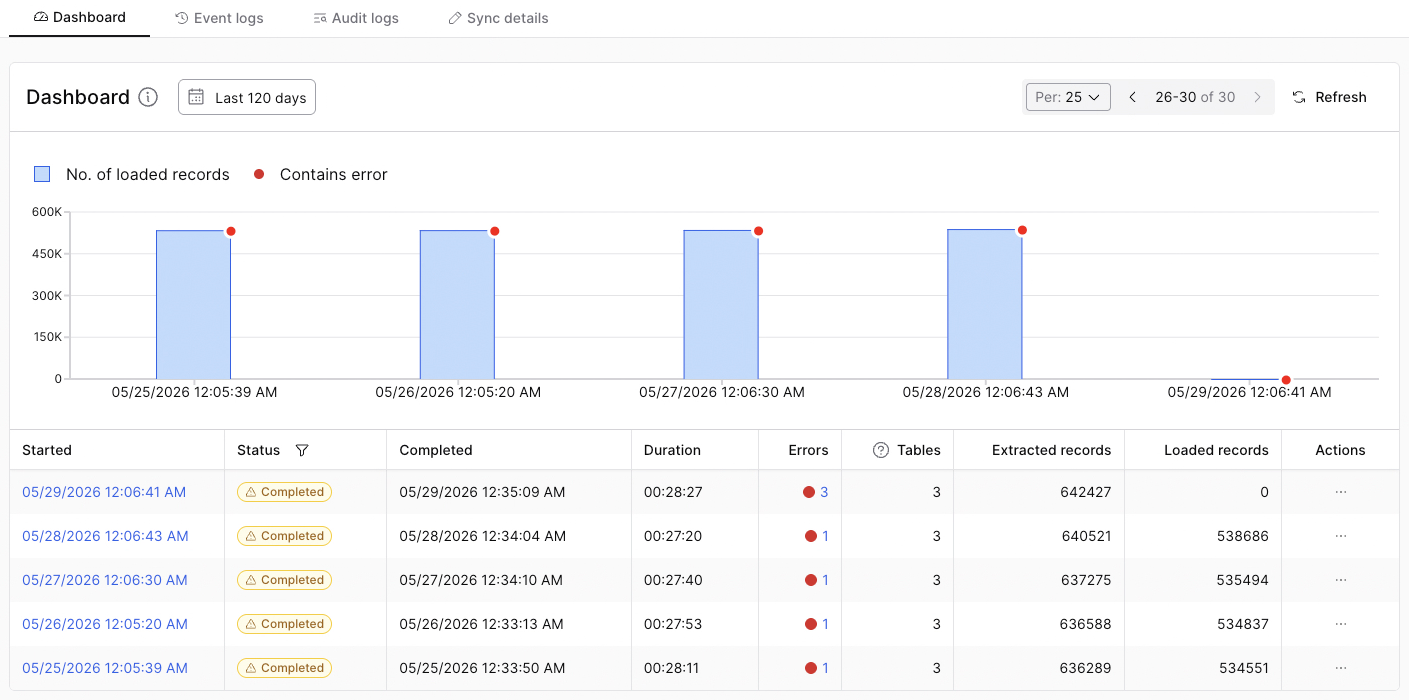

The dashboard provides a visual and easy-to-interpret record of a sync’s runs. To view a dashboard, open its integration and click the sync name. The first tab you’ll see is Dashboard.
Click at the top to select and apply a range of time for filtering the sync runs displayed. The graph shows the overall trend of how many records were loaded with each run.
Each run is also represented in the table below with additional information in each column.
-
Started: Initial timestamp of a scheduled or on-demand sync run. (Sort by newest or oldest.)
-
Status: How an in-progress or finished sync is currently standing, such as Running, Failed, or Completed. (Filter by status.)
-
Completed: Final timestamp of a sync run. (Sort by newest or oldest.)
-
Duration: Time lapsed from the started and completed timestamps.
-
Errors: The number of runtime errors that Celigo encountered or received from the source and destination applications. An error count greater than zero offers a link to view more information about the errors. (Sort by highest or lowest error count per sync run.)
-
Tables: The amount of tables polled during the sync run. (Sort by highest or lowest table number.)
-
Extracted records: The number of records contained in the source objects or exports. (Sort by highest or lowest number.)
-
Loaded records: The number of records written at the destination system’s tables. (Sort by highest or lowest number.)
-
Actions overflow (...)
-

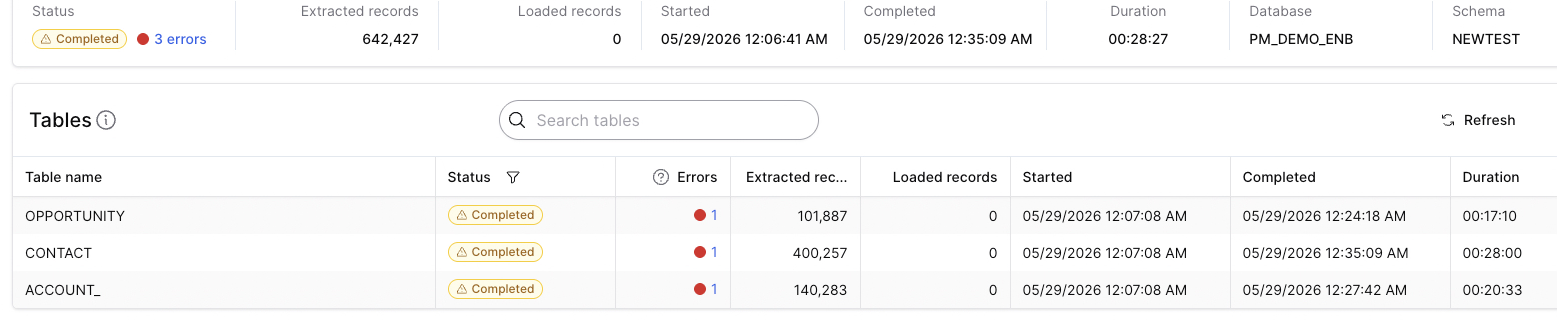

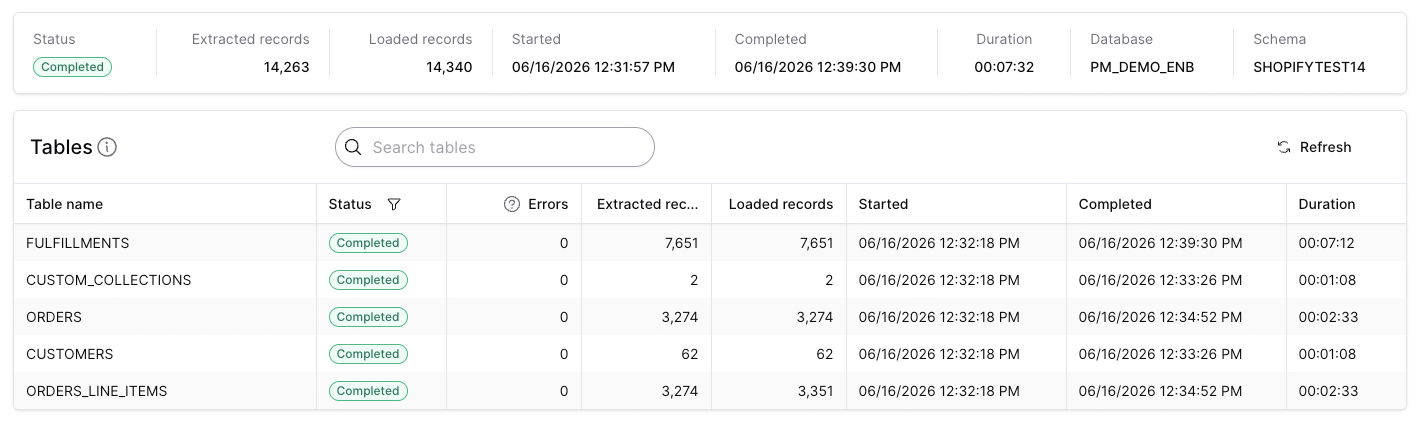

View details: Detailed summary of tables (shown below).
-
Event log: Shortcut to the event log for the selected sync run. (Disabled if unavailable.)
-
Cancel sync run: Cancel an in-progress sync run. (Disabled if completed.)
-
