Click the Settings () button to the right of the field mapping to configure additional mapping settings.
Destination data type: displays the selected data type for the destination field you are mapping. Select a different value to change the data type.

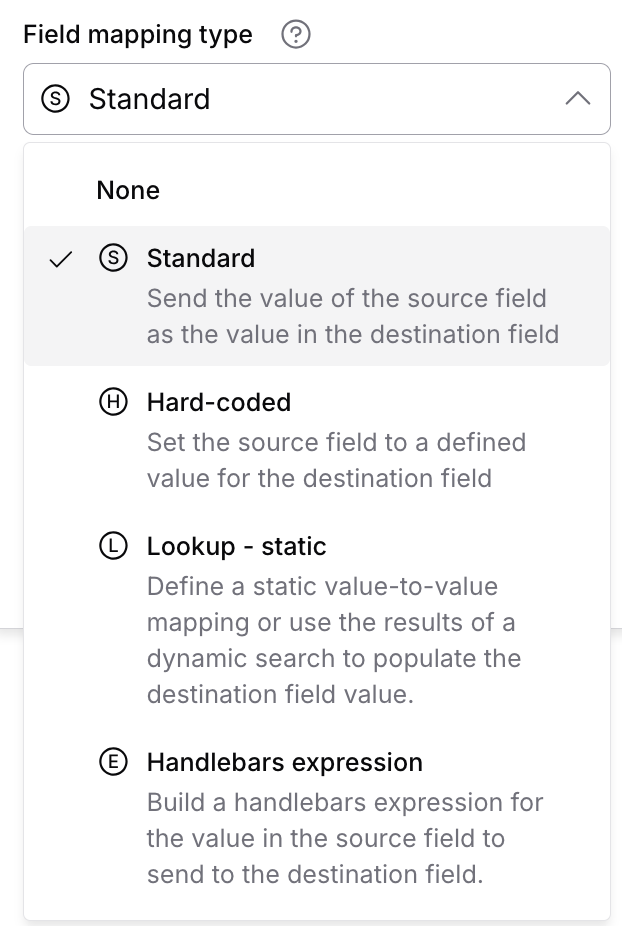

Field mapping type: Select the type of mapping you want to apply to the destination record field. The field mapping types available change depending on the data type you select.
The following field mapping types are available for each data type.
|
Destination data type |
Field mapping types |
|---|---|
|
|
|
Note
Objects and object arrays can either be copied directly to the output or constructed using the Mapper 2.0 interface. If you choose Create object in mapping, each field contained in the object or object array can then use the field mapping types available for its data type.

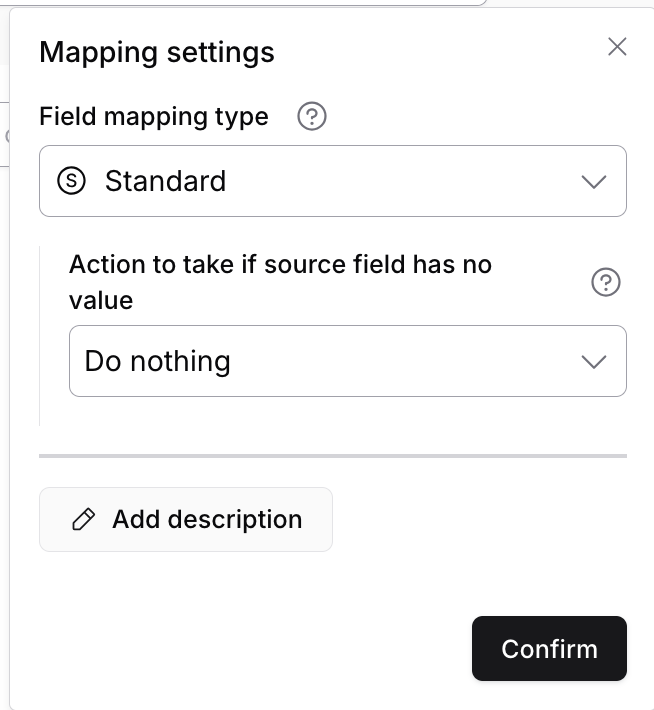

Send the value of the source field as the value in the destination field. This is the default setting, indicating that data found in a specific field in the export should map to its corollary in the import application (1:1 direct mapping).

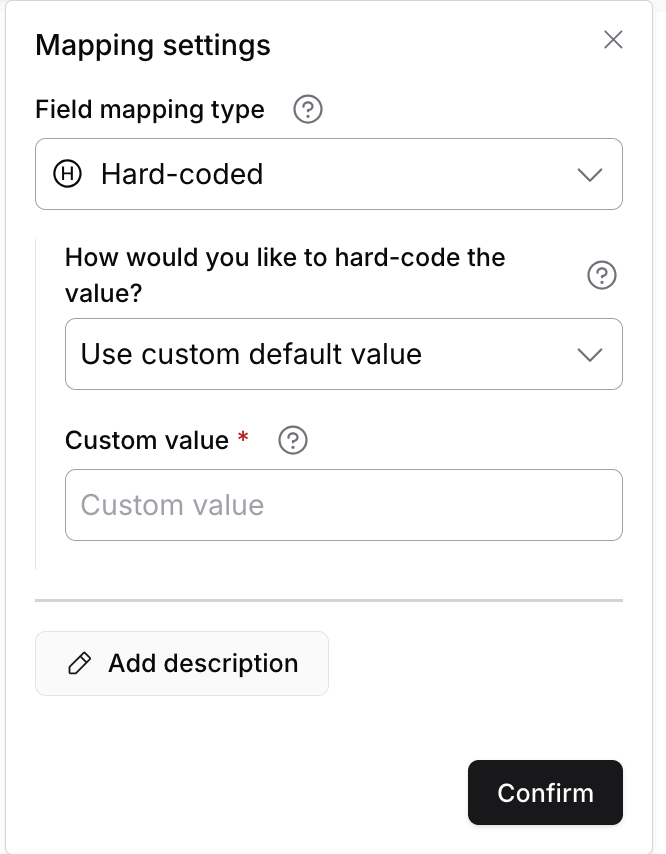

Set the source field to a defined value for the destination field. Use this setting if you prefer to have the same value written to this imported data field for every record, regardless of the exported value.
How would you like to hard-code the value?: Select one of the following options:
-
Use empty string as default value: Inserts empty string
-
Use null as default value: Inserts null value
-
Use custom default value: Inserts custom string value
Custom value: Enter the value to send to the destination field. This field only displays if you choose Use custom default value from How would you like to hard-code the value?.

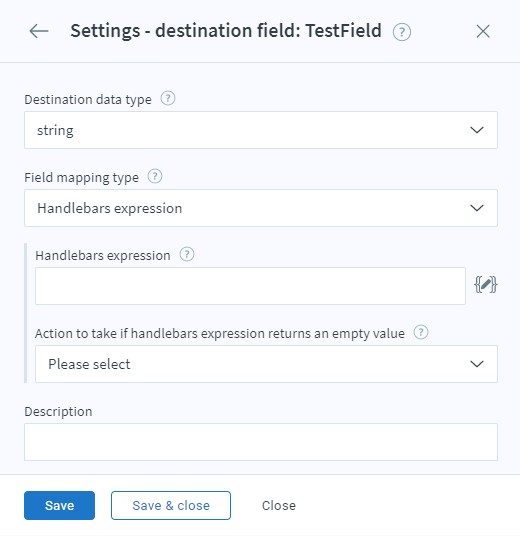

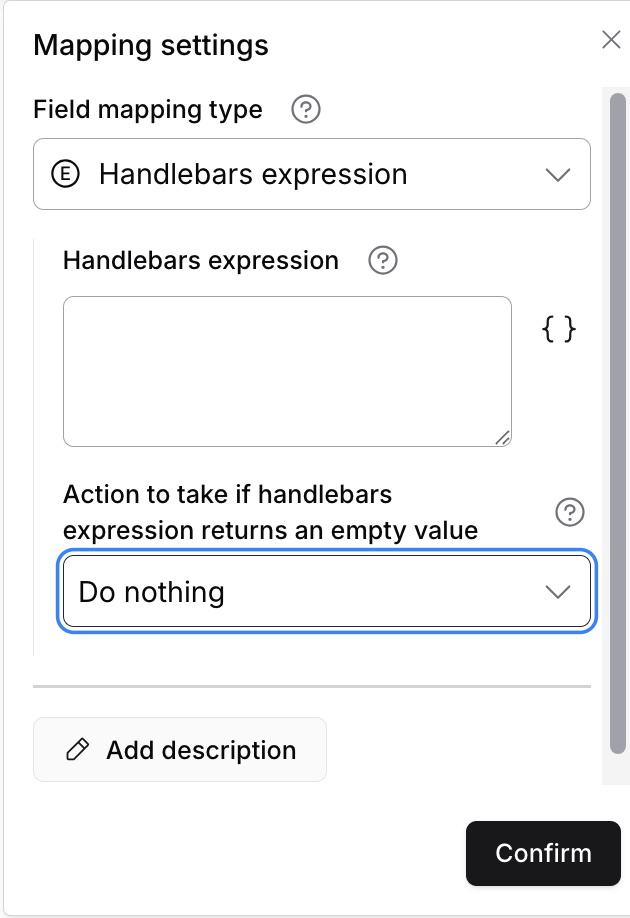

Build a handlebars expression for the value in the source field to send to the destination field.
Handlebars expression: Enter a simple handlebars expression in the field, or click the AFE () button to open the Handlebars advanced field editor (AFE).

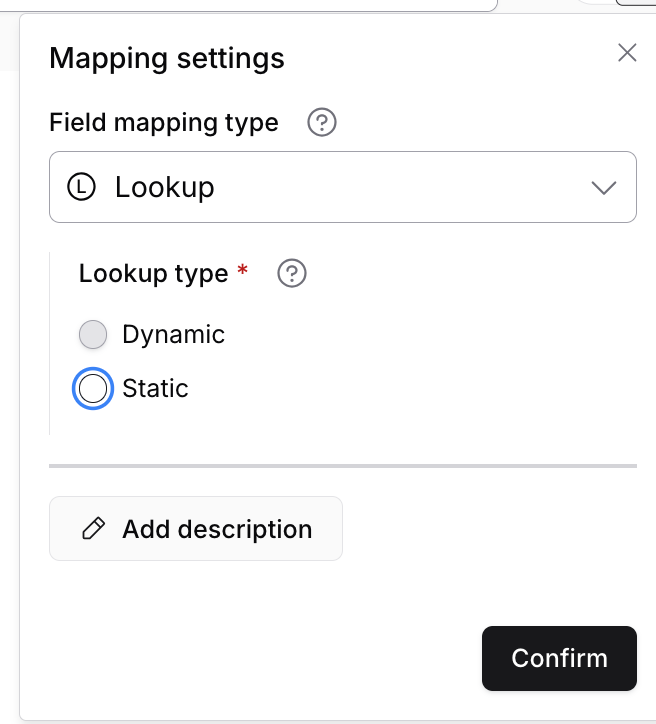

Define a static value-to-value mapping or use the results of a dynamic search to populate the destination field value.

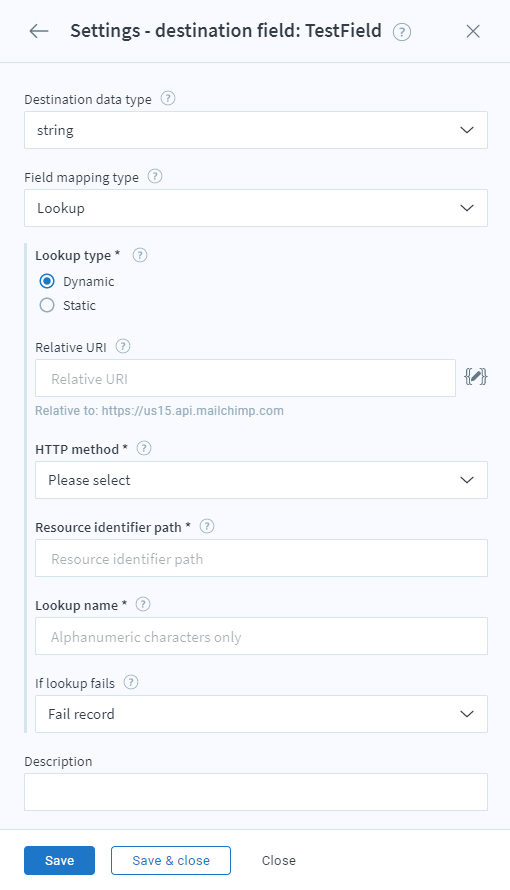

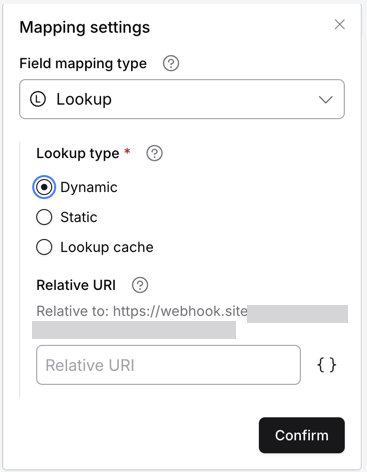

If your integration requires further information from a secondary source in order to determine which record in the destination application data matches a record of the source application data, you can create a dynamic lookup search to retrieve the information needed to match the records.
Relative URI: Enter the relative URI that will be appended to the address displayed below the field. Using the above example, if you enter /customers/search?email={{export.email}}, the call to retrieve data for your lookup will be sent to https://us15.api.mailchimp.com/customers/search?email={{export.email}}. The handlebars expression {{export.email}} would be replaced with the email address stored in the source data email field for each call. Click the AFE () button to create a handlebars expression to dynamically populate the relative URI.
HTTP method: Select GET or POST. Consult the lookup destination app developer documentation for which method to choose.
Resource identifier path: Enter the JSON path where the dynamic lookup will locate the lookup data in the request response. For example, if you enter searchResults[0].name, the dynamic lookup might return:
{
"count": 1,
"searchResults": [
{
"name": "Mary"
"id": 1234
"email": "mary@email.com"
}
]
}
In this example, the value mary@email.com in the field email for a record in the source application’s data matched a record in the lookup destination application’s data based on that email address. The positive result instructs integrator.io to locate the name field in the response and write the value Mary to the field name in the destination application’s record.
If a unique match is not found when performing a dynamic lookup search, by default integrator.io marks the record as failed and does not transfer data for that record. You can alter that behavior by selecting an option from the If lookup fails drop-down list.
Lookup name: Give the lookup a unique name so that it can be easily identified for use in other flows. You can select any dynamic lookups used in other flows to this destination app.
If lookup fails: If no match returns from the lookup search, the record fails by default. integrator.io then marks the record as failed and does not transfer any data for that record. You can select one of the following alternatives if needed:
-
Do nothing: The field name and value is skipped.
-
Fail record (default): integrator.io marks the record as failed and does not transfer any data for that record.
-
Use empty string as default value: Inserts empty string.
-
Use null as default value: Inserts null value.
-
Use custom default value: Inserts any string value you enter in the field provided.

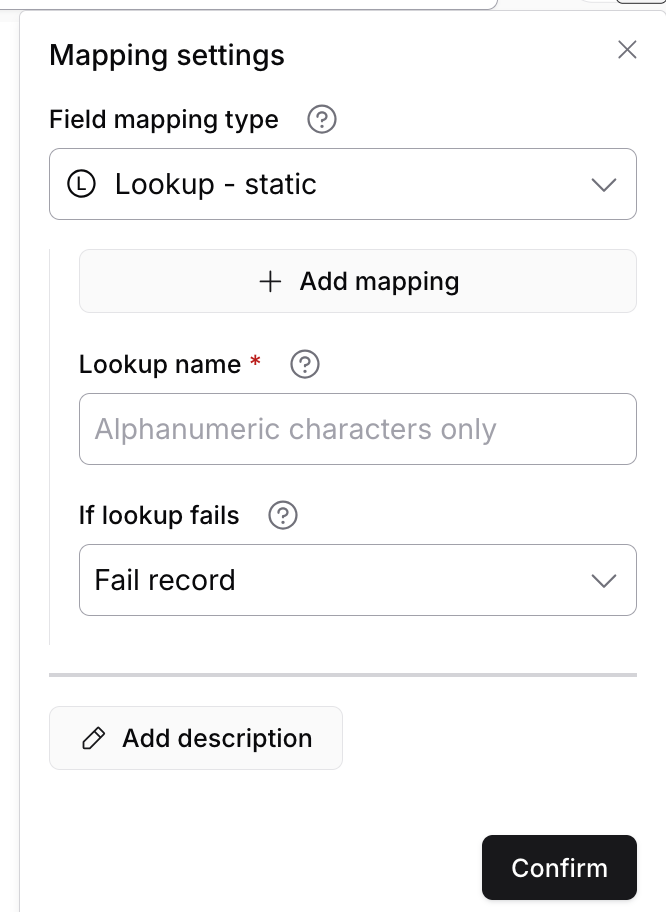

If you already know how a specific field value from the source application data should be replaced before being sent to the destination application, then you can use a static lookup to define how each value should be replaced.
For each Source field value, define the corresponding replacement Destination field value that will be sent to the destination application.

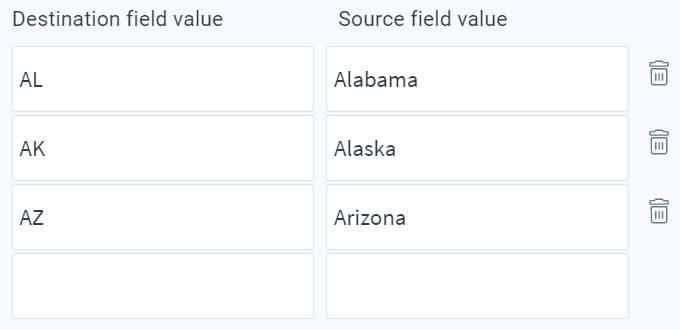

For example, if the source data has a field named state that should be mapped to a corresponding field named Region on the destination application’s import record, but the naming conventions are not the same because the destination data references states with the two-letter convention (AL, AK, AZ) and the corresponding export value for each state uses the full name of the state (Alabama, Alaska, Arizona), you could add all 50 states as Destination field values using the two-letter convention, and Source field values as corresponding full state names. This ensures that each full state name in the source data would be replaced by the two-letter state name during import.
Destination field value: Enter the value as it would be replaced when sent to the destination application.
Source field value: Enter the corresponding value that this field uses in the source application data.
Note
An additional empty line is added to the list with each new value you add, and you can click the Delete () button on the right to delete any line.
Lookup name: Give the lookup a unique name so that it can be easily identified for use in other flows. You can also select any static lookups used in other flows.
If lookup fails: If no match returns from the lookup search, the record fails by default. integrator.io marks the record as failed and does not transfer any data for that record. You can select one of the following alternative options if needed:
-
Do nothing: The field name and value is skipped.
-
Fail record (default): integrator.io marks the record as failed and does not transfer any data for that record.
-
Use empty string as default value: Inserts empty string.
-
Use null as default value: Inserts null value.
-
Use custom default value: Inserts custom string value.
Check this box if the destination field requires a date format. Additional date field options display if this box is checked.
Source field date format: Select the date format for the source field.
Source field date time zone: Select the time zone for the source field.
Destination field date format: Select the date format for the destination field.
Destination field date time zone: Select the time zone for the destination field.

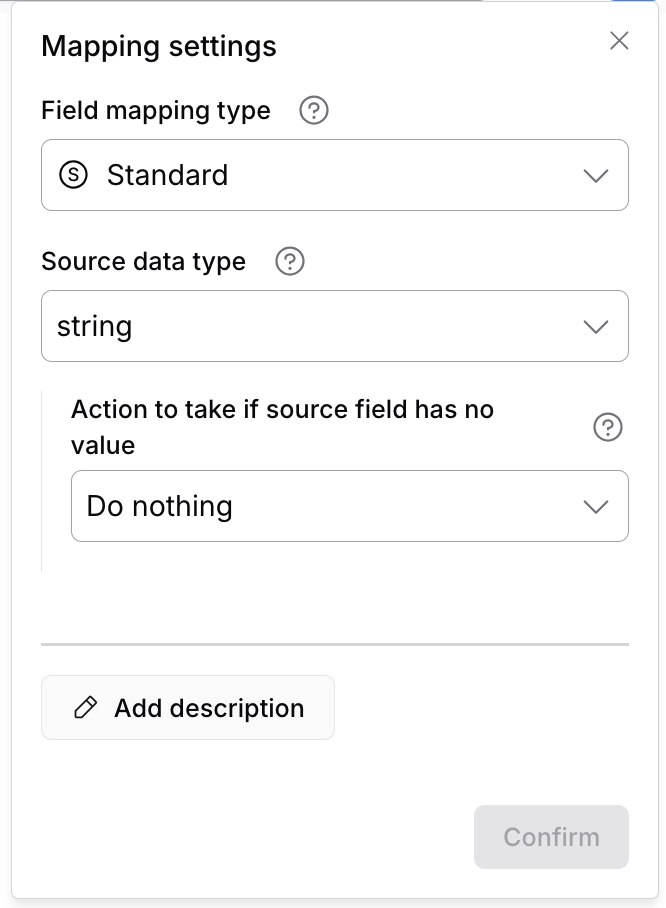

Source field: This field is automatically set if you have already mapped a source field on the Mapper 2.0 panel. You can use the drop-down list to select an existing field from your source data, or enter the JSON path to a source field that is not present in your currently loaded source data. If you are adding a new field, you must also assign the Source data type.
Source data type: If you have already selected a Source field from your source data, the data type is automatically set. If you added a new source field that is not in your currently loaded source data, use the drop-down list to set its data type.
Select one of the following options when the mappings return an empty value. The options available vary according to data type, and the behavior of each selection varies according to which version (Mapper 1.0 or Mapper 2.0) you use to map your fields.
|
Data type |
Action to take if source record field has no value |
Mapper 1.0 |
Mapper 2.0 |
|---|---|---|---|
|
Use empty string as default value |
Inserts empty string |
||
|
Use null as default value |
Inserts null value |
||
|
Use custom default value |
Inserts custom string value |
||
|
Do nothing (default) |
Removes field name and value |
||
|
Use empty string as default value |
Inserts 0 |
||
|
Use null as default value |
Inserts 0 |
Inserts null value |
|
|
Use custom default value |
Inserts custom number value |
||
|
Do nothing (default) |
Inserts 0 |
Removes field name and value |
|
|
Use empty string as default value |
Inserts false |
N/A |
|
|
Use null as default value |
Inserts false |
||
|
Use custom default value |
Inserts false |
Selects true or false |
|
|
Do nothing (default) |
Inserts false |
Removes field name and value |
|
|
Use null as default value |
N/A |
Inserts null value without object formatting |
|
|
Do nothing (default) |
N/A |
Removes field name and value |
|
|
Use empty string as default value |
Inserts empty array |
||
|
Use null as default value |
Inserts empty array |
Inserts null value without array formatting |
|
|
Use custom default value |
Inserts empty array |
Inserts custom values as array ["a", "b", "c", "d"] |
|
|
Do nothing (default) |
Inserts empty array |
Removes field name and value |
|
|
Use empty string as default value |
Inserts empty array |
||
|
Use custom default value |
Inserts empty array |
Inserts custom number values as an array [1, 2, 3, 4] |
|
|
Use null as default value |
Inserts empty array |
Inserts null value without array formatting |
|
|
Do nothing (default) |
Inserts empty array |
Removes field name and value |
|
|
Use empty string as default value |
N/A |
Inserts empty array |
|
|
Use custom default value |
N/A |
Inserts custom values as an array [true, false, false] |
|
|
Use null as default value |
N/A |
Inserts null value without array formatting |
|
|
Do nothing (default) |
N/A |
Removes field name and value |
|
|
Use null as default value |
N/A |
Inserts null value without object formatting |
|
|
Do nothing (default) |
N/A |
Removes field name and value |
|
Settings description: Enter an optional description of the settings configured for this field.
Advanced options only apply to HTTP imports that use composite methods. Only perform mapping when:
-
Creating a record: Choose this option if the mappings you create will apply only to new records you create in the destination application.
-
Updating a record: Choose this option if the mappings you create will apply only to existing records in the destination application.
