Fulfillment flow changes in Shopify - MYOB Advanced template

The MYOB Advanced shipments to Shopify fulfillments flow is a partial fulfillment flow that does fulfillments in Shopify. To identify the flow in your integrator.io account, follow the steps in the Find deprecated endpoints in existing flows.

IMPORTANT : The flow configuration explained below is for Acumatica shipments to Shopify fulfillments, the same configuration is applicable to MYOB Advanced shipments to Shopify fulfillments flow in the Shopify - MYOB Advanced template.

Before you update the MYOB Advanced shipments to Shopify fulfillments flow, download the zip file to your local drive.

Download

Install and configure the custom flow by following the steps mentioned in the Install integration or download integration zip article.

You have two options to update the MYOB Advanced shipments to Shopify fulfillments flow, but we recommend using the first one:

  • Option 1: In the newly installed flow, update all the mappings or other customizations or important configurations based on the old flow.

  • Option 2: In the old flow, update the imports, exports, mappings, and any other flow configurations by referring to the newly installed flow.

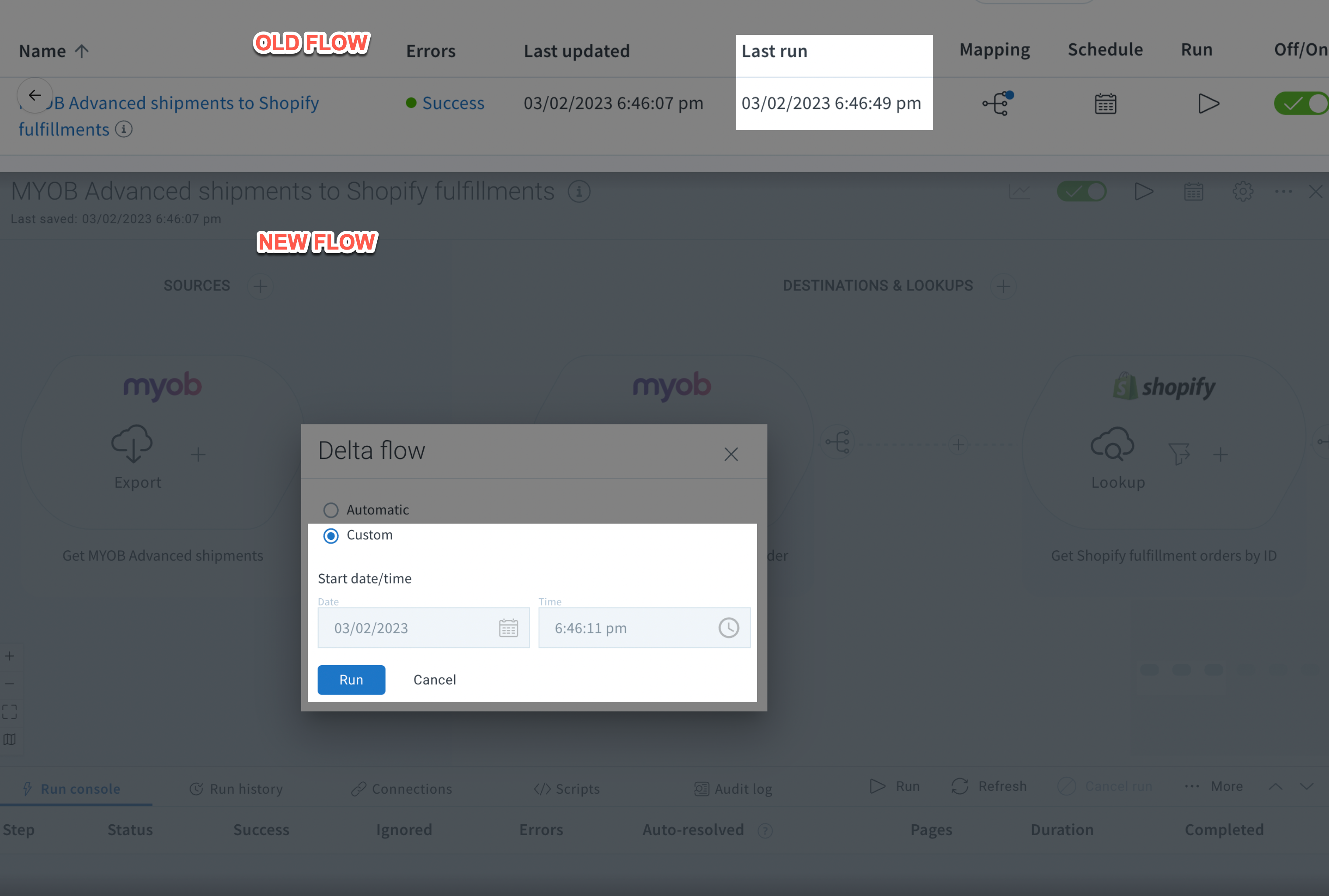

If you have chosen to use Option 1 to update the flow, once all the mapping updates are done in the new flow based on the old flow, refer to the Last run details (run timestamp) of the old flow and use the Custom run in Run now setting to run the new flow for the first time so that the flow doesn't sync all the records again.


Once the Custom run is complete, click the Run now setting and close the window, and then schedule the new flow by referring to the old flow schedule details.

If you are using Option 2 to update the MYOB Advanced shipments to Shopify fulfillments flow, follow the below instructions:

  1. Log in to your integrator.io account.

  2. In the Shopify - MYOB Advanced template, go to the MYOB Advanced shipments to Shopify fulfillments flow .

  3. Open the fulfillment import mappings and take a copy of the existing mappings as the new changes would remove the old mappings. You can capture screenshots of the existing mappings or clone the flow so that the mappings and other components will be stored for future reference. For more information, see Clone integrations and flows.

  4. Follow the instructions from Steps 3 to 8, 13 to 14, and 16 to 18 in the section Create a new Fulfillment(Deprecated) to Creates a fulfillment for one or many fulfillment orders.

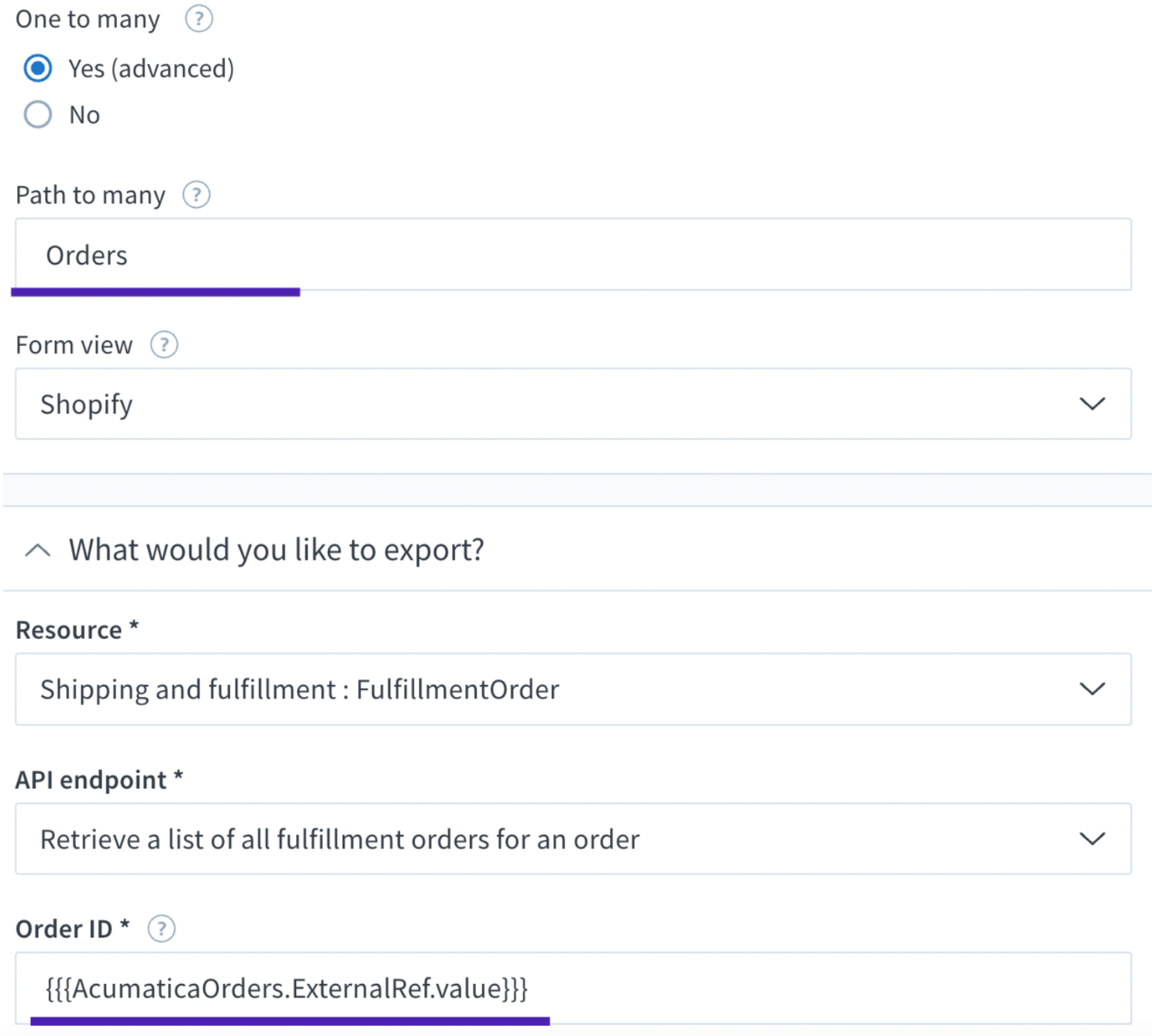

  5. Open the Get a list of fulfillment orders for a specific order lookup , and set the following:

    1. Path to many: Orders

    2. In the Order ID field, paste {{{AcumaticaOrders.ExternalRef.value}}}.

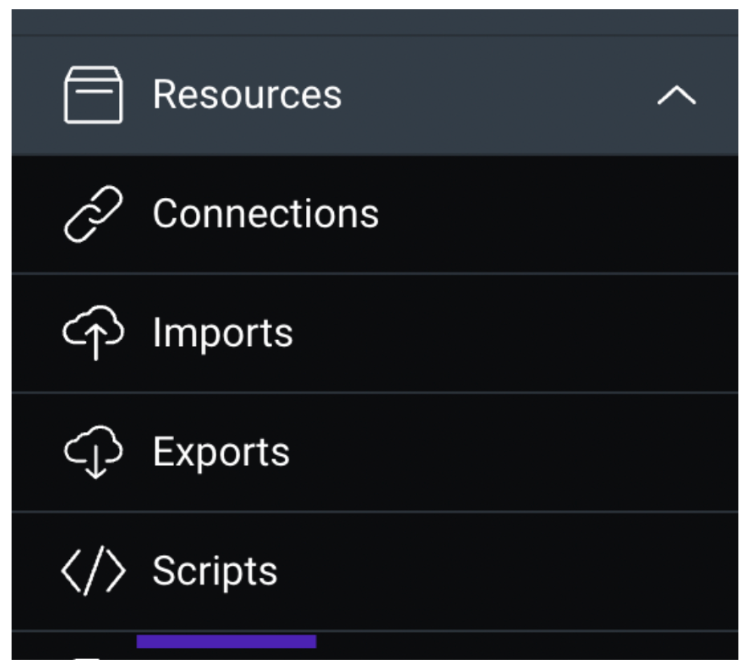

  6. After adding the lookup Get a list of fulfillment orders for a specific order , and import steps Move the location of fulfillment Order and Import Shopify fulfillments. Create a script under ResourcesScripts.

  7. In the Name field, provide a name for the script.

  8. In the Edit content, paste the below code. The below script assumes that the data structure in the flow is the same as when it was installed.

    function  postResponseMap  (options) {
        var  newObj =  JSON  .parse(  JSON  .stringify(options.postResponseMapData[  0  ]))
        for  (  var  i =  0  ; i < newObj.fulfillmentOrders.length; i++) {
            delete  newObj.fulfillmentOrders[i].line_items
           newObj.fulfillmentOrders[i].line_items = []
       }
        for  (  var  j =  0  ; j < newObj.AcumaticaOrders.Details.length; j++) {
            var  etailOrderLineId = newObj.AcumaticaOrders.Details[j].LineDescription[  "value"  ];
            for  (  var  l =  0  ; l < newObj.fulfillmentOrders.length; l++) {
                var  oldLineItems = []
               oldLineItems = options.postResponseMapData[  0  ].fulfillmentOrders[l].line_items
                for  (  var  k =  0  ; k < oldLineItems.length; k++) {
                    if  (etailOrderLineId == oldLineItems[k].line_item_id) {
                       newObj.fulfillmentOrders[l].line_items.push(oldLineItems[k])
                        if  (newObj.AcumaticaOrders.Details[j].QtyOnShipments.value <= newObj.fulfillmentOrders[l].line_items[k].fulfillable_quantity) {
                           newObj.fulfillmentOrders[l].line_items[k].newQuantity = newObj.AcumaticaOrders.Details[j].QtyOnShipments.value
                       }  else  {
                           newObj.fulfillmentOrders[l].line_items[k].newQuantity = newObj.fulfillmentOrders[l].line_items[k].fulfillable_quantity
                       }
                   }
               }
           }
       }
        for  (  var  q =  0  ; q < newObj.fulfillmentOrders.length; q++) {
            var  orgLineItems = newObj.fulfillmentOrders[q].line_items
            delete  newObj.fulfillmentOrders[q].line_items
           newObj.fulfillmentOrders[q].line_items = orgLineItems.filter(array => array.newQuantity !=  0  )
       }
        var  orgfulfillmentOrders = newObj.fulfillmentOrders
        delete  newObj.fulfillmentOrders
       newObj.fulfillmentOrders = orgfulfillmentOrders.filter(orderArray => orderArray.line_items.length !=  0  )
        var  data = []
       data.push(newObj)
        return  data
     }

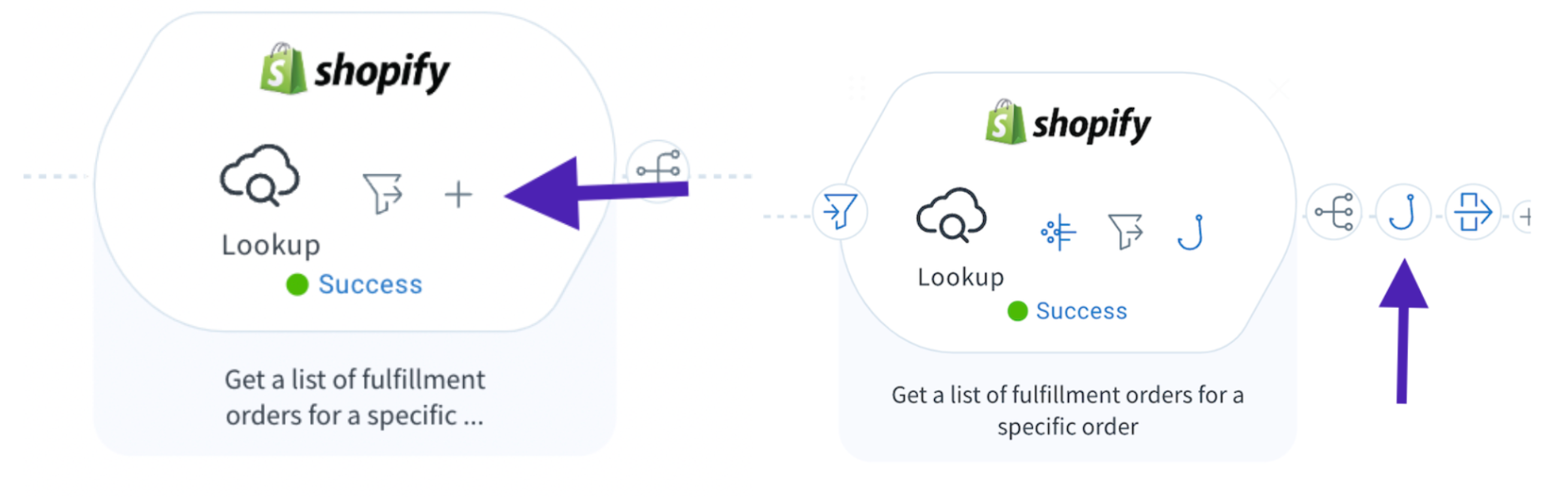

  9. Go back to the flow. In the Get a list of fulfillment orders for a specific order lookup, click + and then click the hook ​​hook.svg​​ shown in the screenshot.

  10. Select the script that you have created.

  11. Click Save and then click Close.

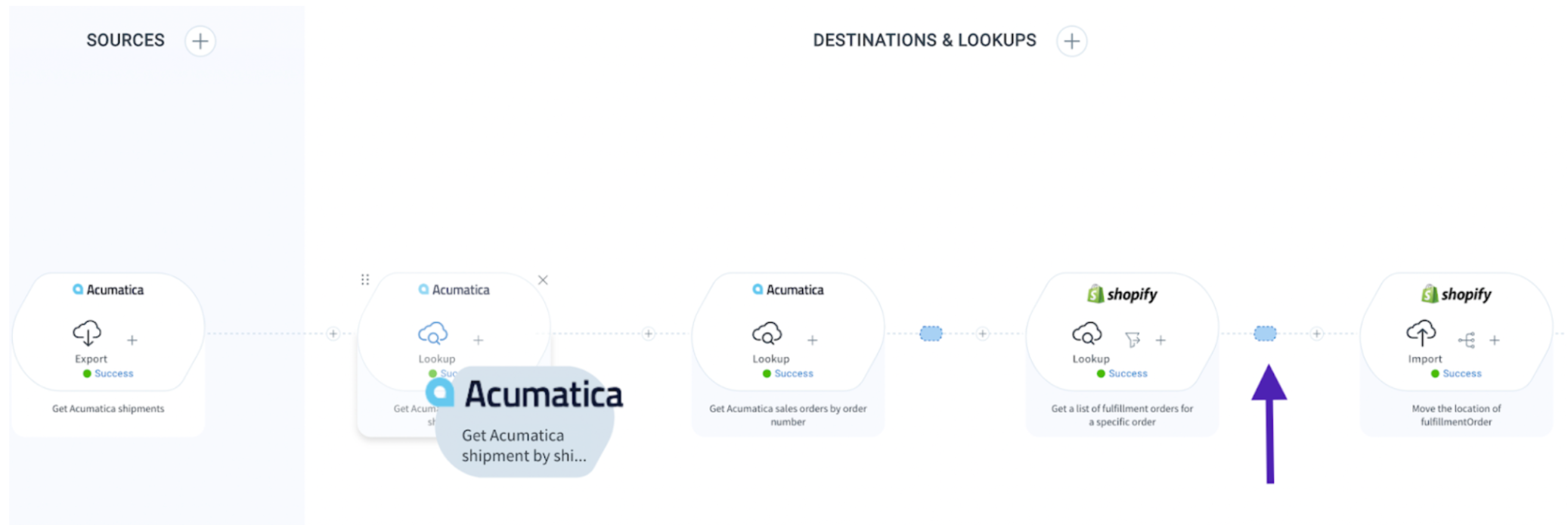

  12. Hold the Get MYOB Advanced shipment by shipment id step and place it as pointed out in the figure.

  13. Create another script under ResourcesScripts.

  14. In the Name field, provide a name for the script.

  15. In the Edit content, paste the below code.

    function   postResponseMap  (options) {
      let  data = options.postResponseMapData
      for  (  var  i =  0  ; i < data.length; i++) {
      data[i].fulfillmentOrders = []
      for  (  var  j =  0  ; j < data[i].Orders.length; j++) {
      for  (  var  k =  0  ; k < data[i].Orders[j].fulfillmentOrders.length; k++) {
      data[i].fulfillmentOrders.push(data[i].Orders[j].fulfillmentOrders[k])
      }

      }
      }
      return  data
     }

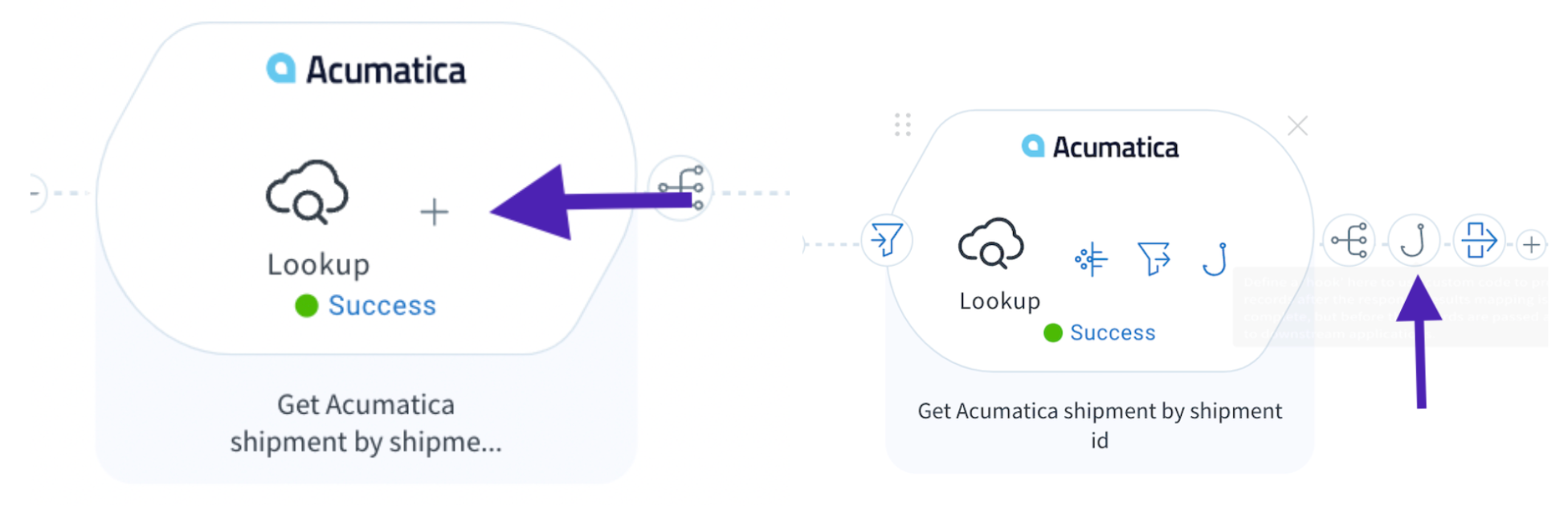

  16. Go back to the flow. In the Get MYOB Advanced shipment by shipment id lookup, click + and then click the hook as shown in the screenshot.

  17. Select the script that you have created.

  18. Click Save and then click Close.

  19. Create another script under ResourcesScripts.

  20. In the Name field, provide a name for the script.

  21. In the Edit content, paste the below code.

    function filter (options) {
      if(options.record.assigned_location_id != 123456 ){
         return true
      }else{
      return false
      }
    }

    Here, enter the Shopify location ID where you want to fulfill the fulfillment orders.

    if(options.record.assigned_location_id != 123456 ){
  22. Go back to the flow. In the Get a list of fulfillment orders for a specific order lookup, click + and then click the hook as shown in the screenshot.

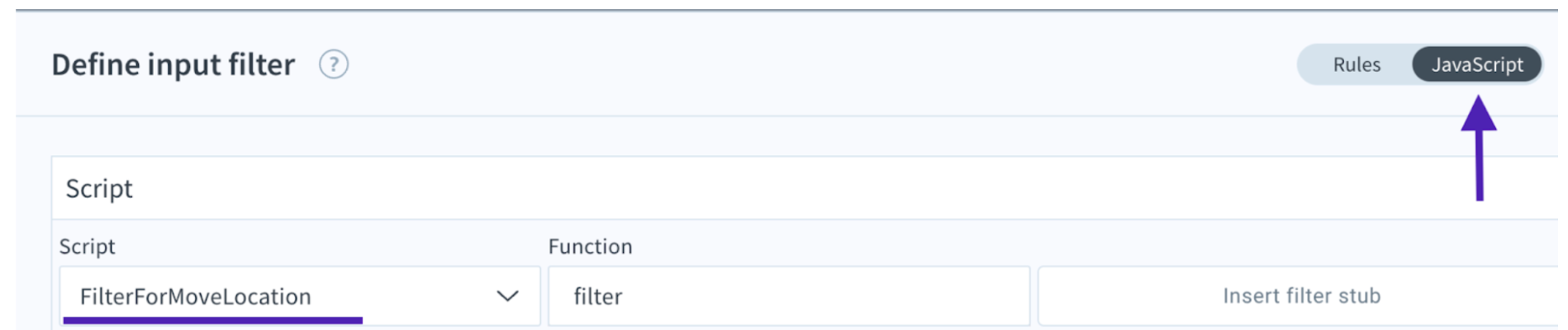

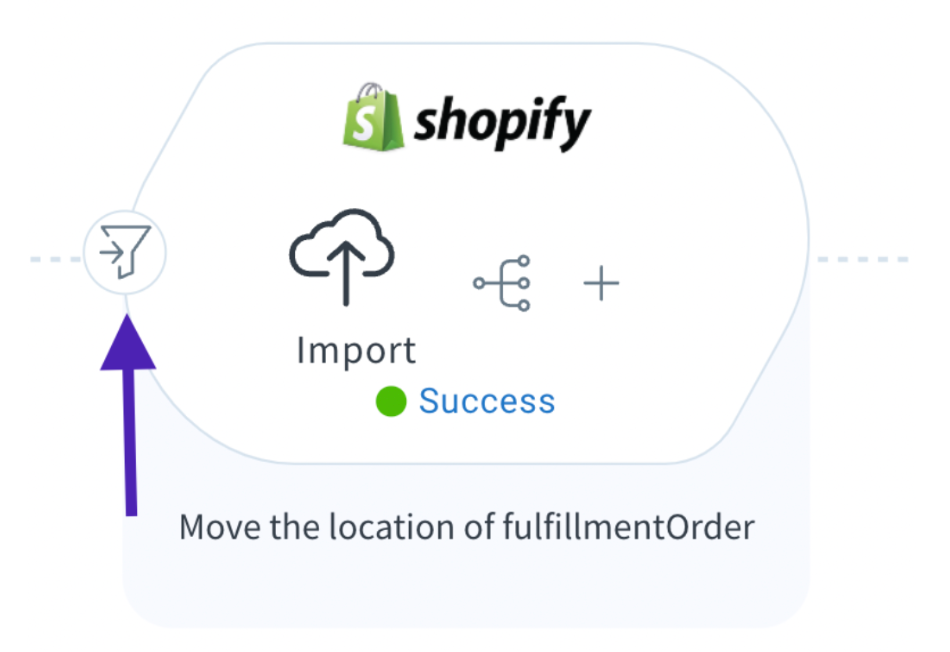

  23. Click the input filter icon filterIn.svg.

  24. Click JavaScript at the top right corner and select the script that you have created in the previous step.

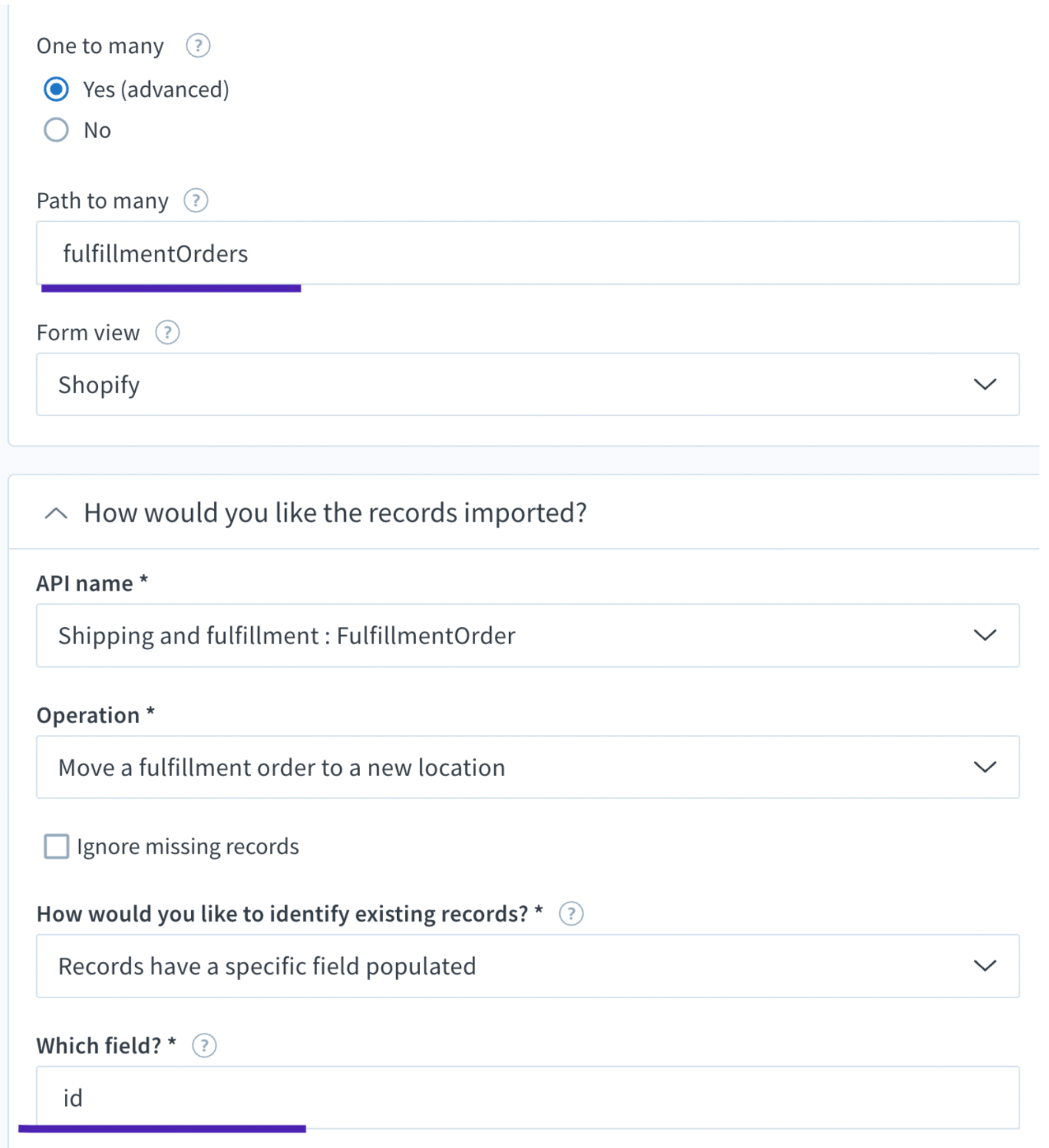

  25. Open the Move the location of fulfillmentOrder import and set the following:

    1. Path to many as fulfillmentOrders

    2. Which field? Enter id as shown below in the screenshot

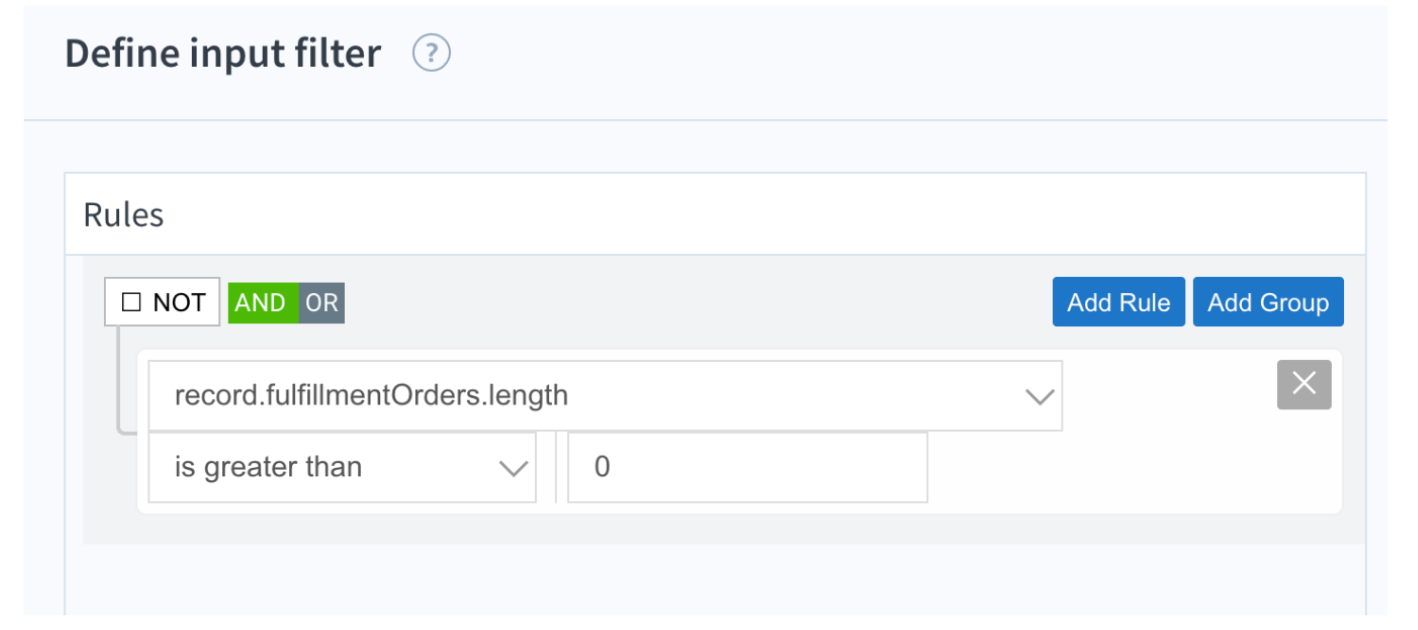

  26. In the Import Shopify fulfillments import, add an input filter to allow only the records with fulfillmentOrders length greater than zero.

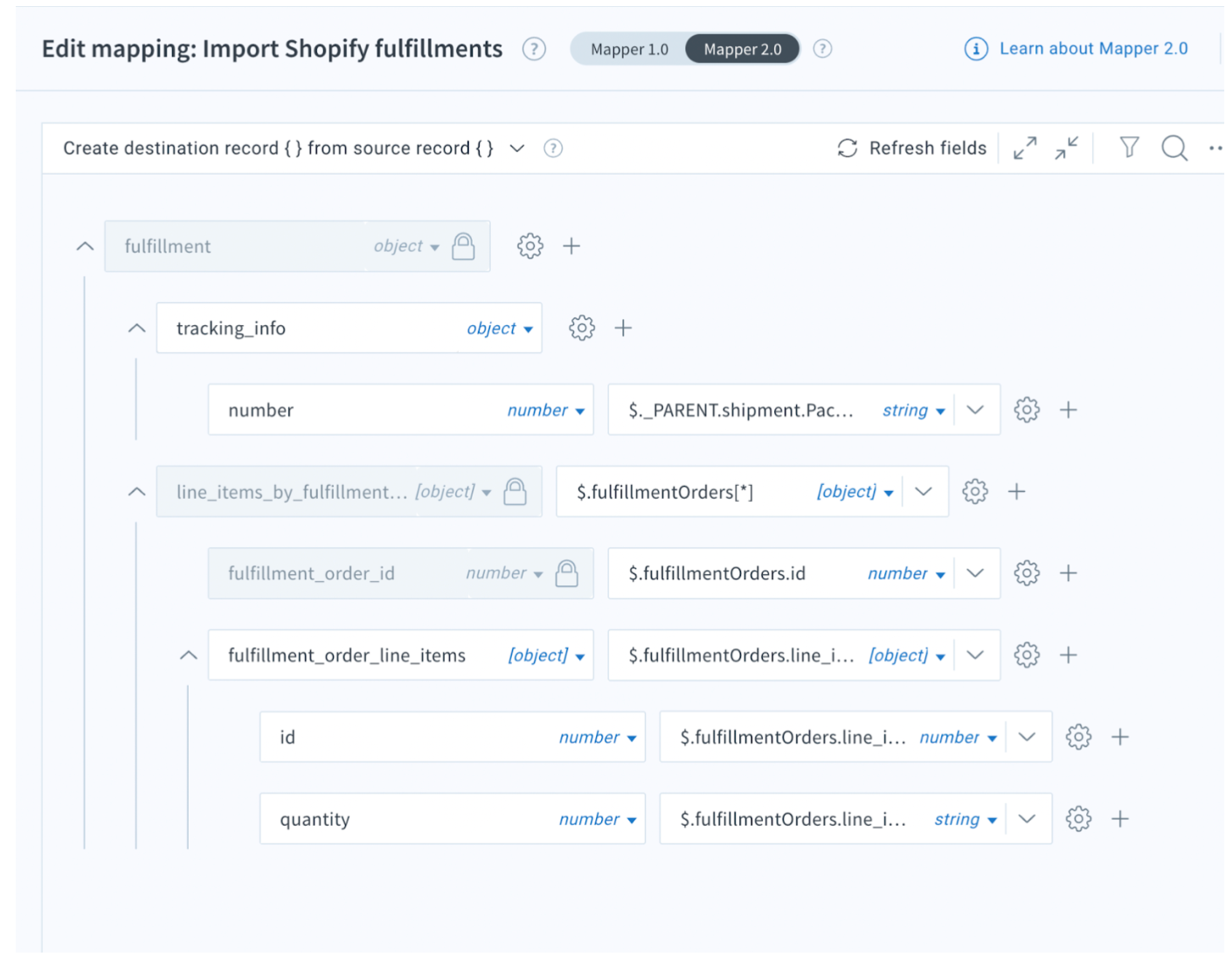

  27. On the Import Shopify fulfillments import, click the Mappings icon and use Mapper 2.0 to configure the mappings provided in the table below.

Destination record fields

Source record fields

fulfillment.tracking_info.number

$._PARENT.shipment.Packages[0].TrackingNbr.value

fulfillment.line_items_by_fulfillment_order[*].fulfillment_order_id

$.fulfillmentOrders[*].id

fulfillment.line_items_by_fulfillment_order[*].fulfillment_order_line_items[*].id

$.fulfillmentOrders[*].line_items[*].id

fulfillment.line_items_by_fulfillment_order[*].fulfillment_order_line_items[*].quantity

$.fulfillmentOrders[*] .line_items[*]. newQuantity


The following screenshot displays the overall flow structure of the MYOB Advanced shipments to Shopify fulfillments flow.
