Set up a connection to Microsoft Power Automate

Microsoft Power Automate helps to automate the workflows between applications and services without a code.

Microsoft Power Automate documentation: API guide, Authentication
Additional reference:  Supported Microsoft Power Automate APIs

Contents

• A. Set up a Microsoft Power Automate connection
• B. Provide required Microsoft Power Automate application details
  • Retrieve your Microsoft Power Automate subdomain
  • Retrieve your Microsoft Power Automate tenant ID
  • Retrieve your Microsoft Power Automate client ID and client secret
• C. Edit advanced Microsoft Power Automate settings
• D. Save and authorize

A. Set up a Microsoft Power Automate connection.

Start establishing a connection to Microsoft Power Automate in either of the following ways:

• From the Resources menu, select Connections. Then, click + Create connection at the top right.
      – or –
• While working in a new or existing integration, you can add an application to a flow simply by clicking Add source or Add destination/lookup.

In the resulting Application list, select Microsoft Power Automate.

The Create connection panel opens with required and advanced settings.

B. Provide required Microsoft Power Automate application details

At this point, you’re presented with options for providing Microsoft Power Automate authentication.

Name (required):Provide a clear and distinguishable name. Throughout integrator.io imports and exports, you will have the option to choose this new connection, and a unique identifier will prove helpful later when selecting among a list of connections that you’ve created.

Application (required, non-editable): A reminder of the app you’re editing.

Subdomain (required): Enter your Microsoft Power Automate subdomain.  For more information on how to view the subdomain, refer to the following steps:

Retrieve your Microsoft Power Automate subdomain

1. Sign in to your Microsoft Power Automate account.

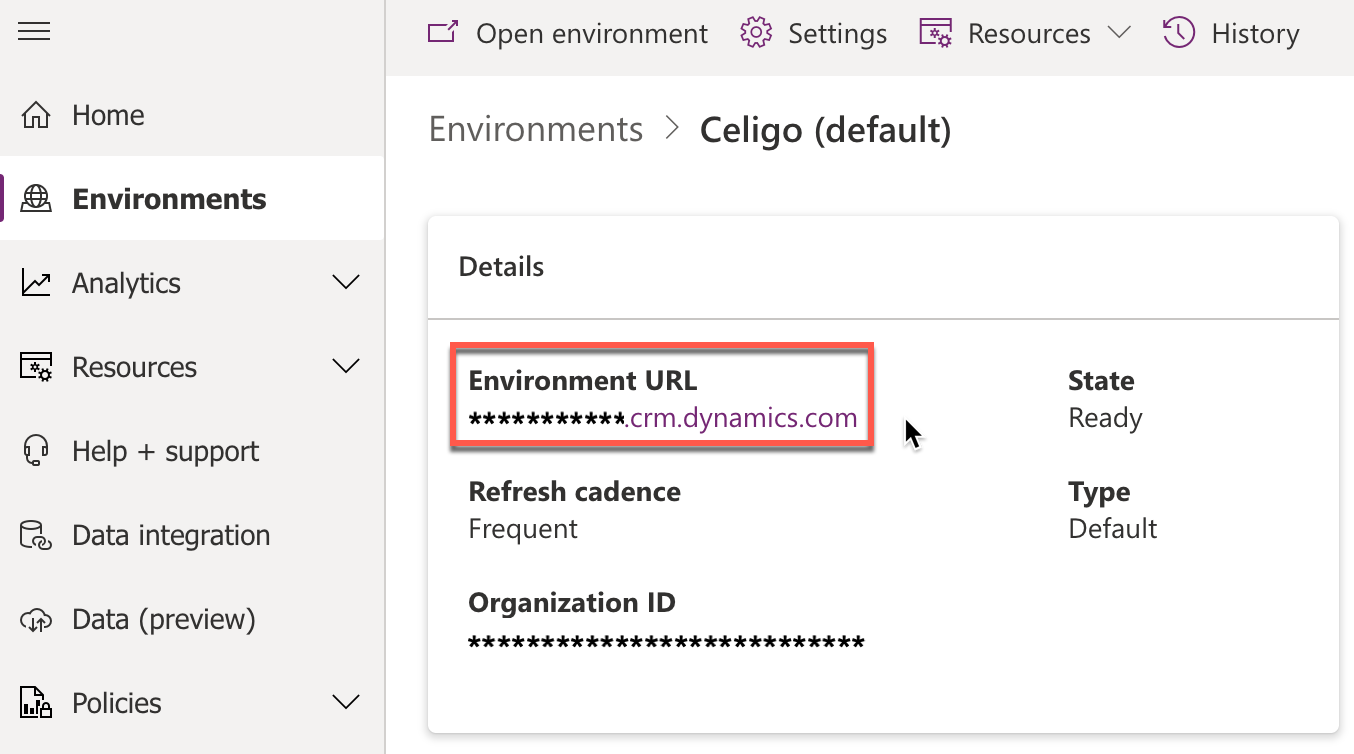

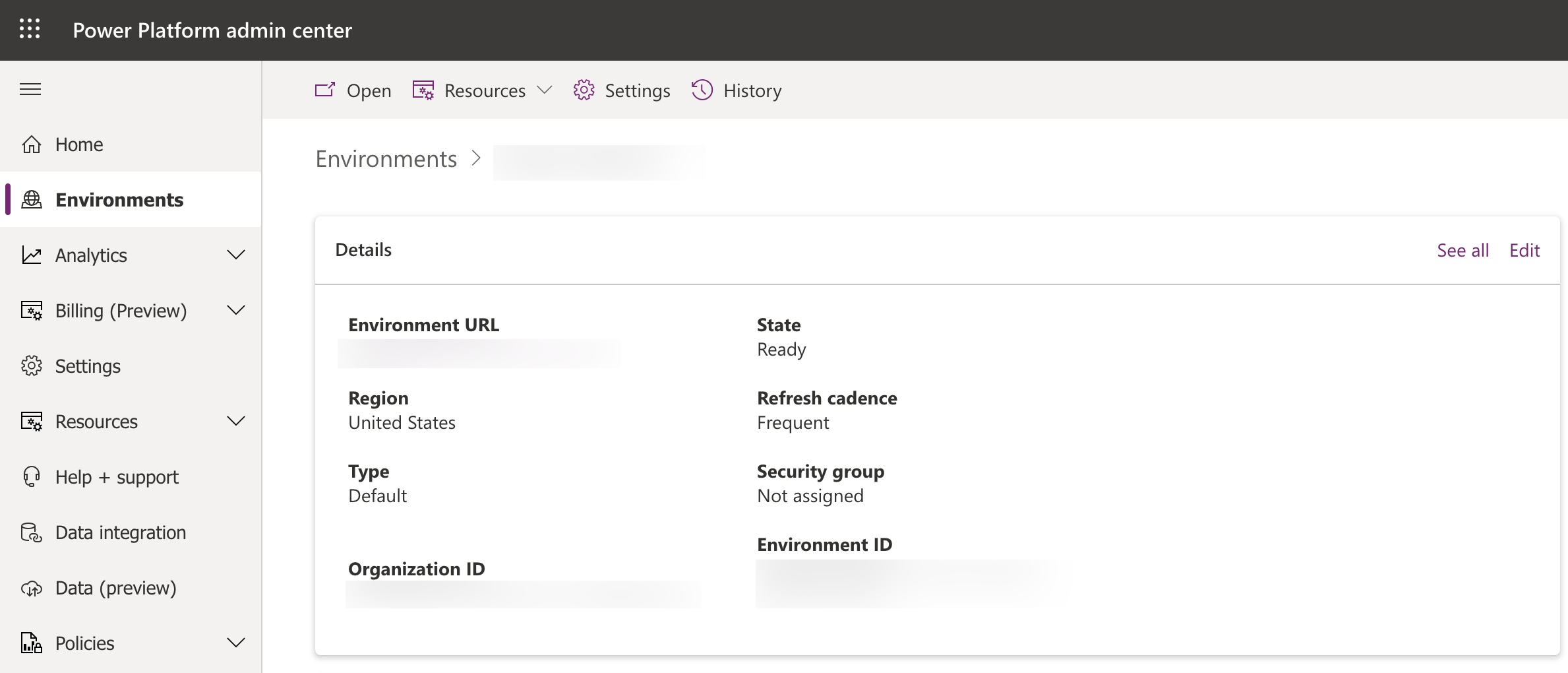

2. Navigate to Settings > Admin center > Environments and select the required environment.

3. From Environment URL, copy the subdomain. For example, if https://orgbe1234.crm.dynamics.com is the URL, then orgbe1234.crm is your subdomain.

Tenant ID (required): Enter the Tenant ID of your Microsoft Azure application. For more information on how to retrieve the tenant ID, refer to the following steps:

Retrieve your Microsoft Power Automate tenant ID

1. Sign in to your Microsoft Azure account.

2. Navigate to Azure Active Directory > App registrations and click the required app.

3. From the Essentials section, copy your tenant ID.

IClient (required): Select the iClient that stores the client ID and client secret provided to you by Microsoft Azure. To add an iClient and configure your credentials, click the plus (+) button. Click the edit ( ) button to modify a selected iClient. Provide a clear and distinguishable name to use in any other connections. Multiple layers of protection are in place, including AES 256 encryption, to keep your connection’s client secret safe. When editing the iClient at any point, you must enter the secret value again; it is stored only when the connection is saved and never displayed as text.

Retrieve your Microsoft Power Automate client ID and client secret

1. Sign in to your Microsoft Azure account.

2. Navigate to Azure Active Directory > App registrations and click the required app.

3. From the Essentials section, copy your client ID.

4. Navigate Certificates & secrets and copy your client secret.

Redirect URL (read-only): Copy this integrator.io redirect URL to provide directions to Microsoft Power Automate for where to go after authentication. (This URL should be whitelisted with the authorization server.)

C.Edit advanced Microsoft Power Automate settings

Before continuing, you have the opportunity to provide additional configuration information, if needed, for the Microsoft Power Automate connection.

Borrow concurrency from (optional): Select another connection from the list. By default, all data flowing through a connection record is submitted to the respective endpoint application at the Concurrency level configured for that connection record. There are cases, however, where multiple integrator.io connections need to share the same concurrency level, and this field allows you to specify which connection you would like to borrow from. With borrowed concurrency, the data flowing through both connections will be submitted to the endpoint application together, via a shared concurrency model.

Concurrency level (optional): Up to 25 allowed...

D. Save and authorize

To save and authorize the Microsoft Dynamics 365 Business Central connection:

1. Click the Save & authorize button to commit your changes and proceed to log in with Microsoft Power Automate.
2. Enter the email address of your registered Microsoft Power Automate account.
3. Click Next.

4. Enter the password for your Microsoft Power Automate account.
5. Click Sign in.
6. Review the permission and click Accept to grant permission and establish the connection.

The new connection is now successfully added to your account. It will be applied to the current source or destination app, if you created it within a flow. Otherwise, you may proceed to register the connection with an integration.
