Set up an OAuth 2.0 connection to Shopify

Naga Sri Hari Gonaboyina
  • Updated

Shopify is an e-commerce platform that allows users to set up an online store and sell their products. It helps you manage your orders - from inventory to point of sale to shipping and returns.

To configure the Shopify connection in integrator.io, you must install the integrator.io app in the Shopify app store.

This article explains how to install the integrator.io app from the Shopify app store and configure OAuth 2.0 connection.

Shopify documentation: API Guide, Authentication
Additional reference: Supported Shopify APIs

Contents

A. Set up a Shopify connection

Start establishing a connection to Shopify in either of the following ways:

  • From the Resources menu, select Connections. Then, click + Create connection at the top right.
        – or –
  • While working in a new or existing integration, you can add an application to a flow simply by clicking Add source or Add destination.

In the resulting Application list, select Shopify.


The Create connection panel opens with the required and advanced settings.

B. Provide Shopify application details

Auth type (required): Select OAuth 2.0 as the authentication type for this connection. The form changes depending on the selected authentication type. The OAuth 2.0 authentication type requires configuring the connection from the Shopify app store.

Shopify

To configure the connection:

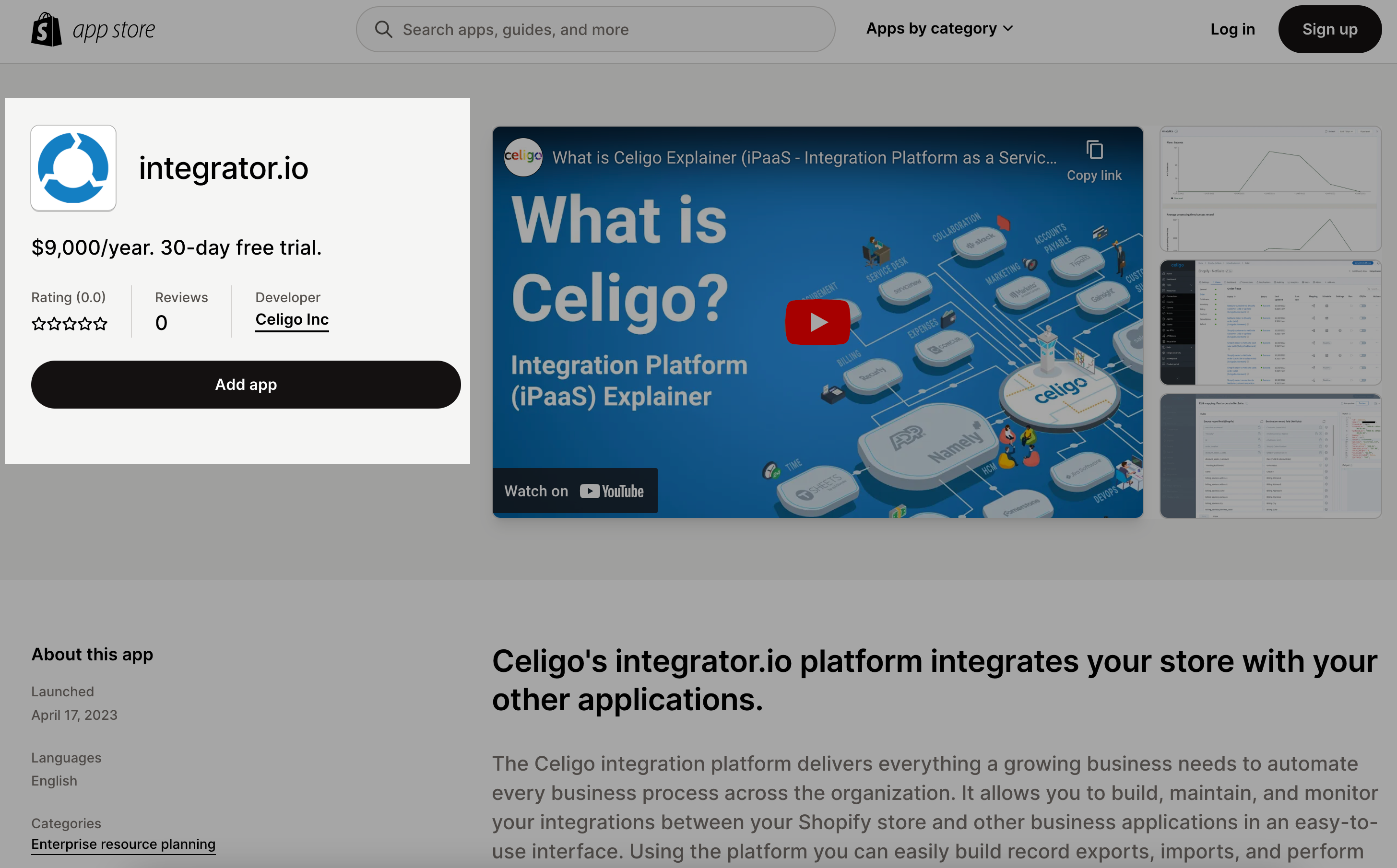

  1. Click Continue at the Shopify app store. The Celigo app page appears.
  1. Click Add app. The login page appears.

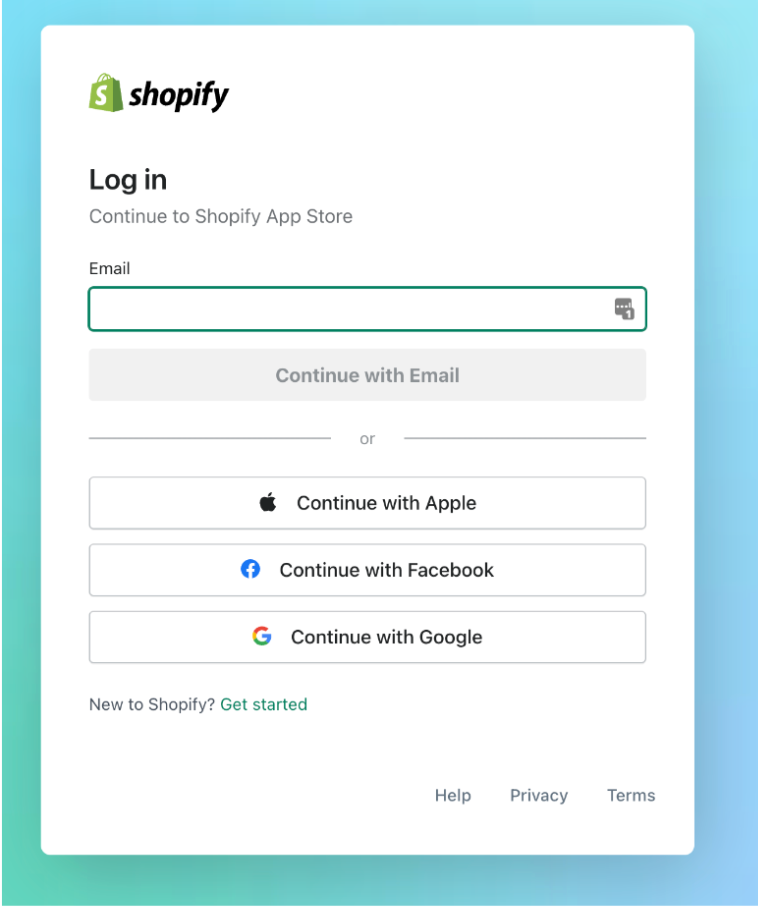

  2. Sign in to your Shopify account. The Your stores window appears.

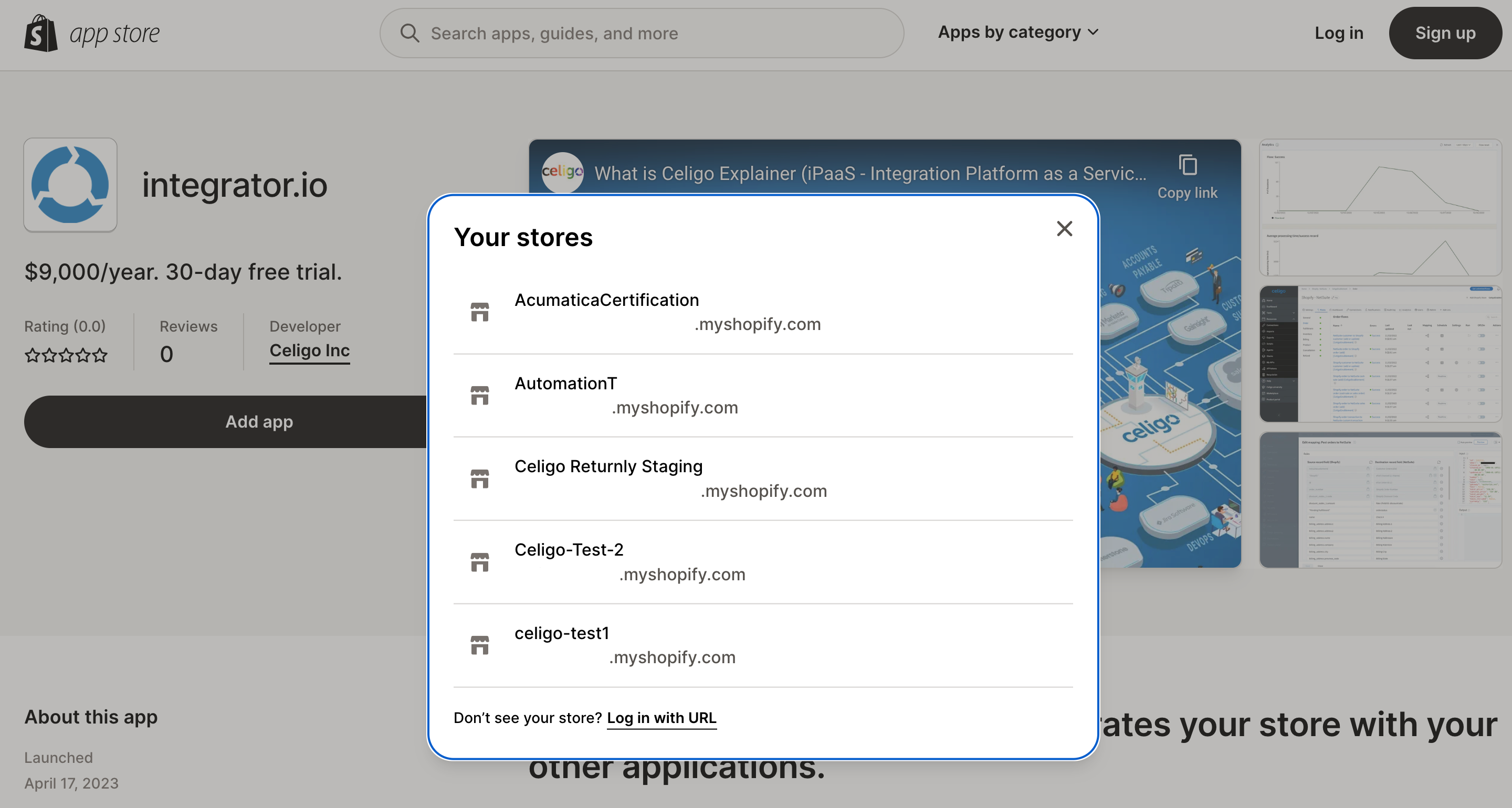

  3. Select the required store. The Install integrator.io page appears.

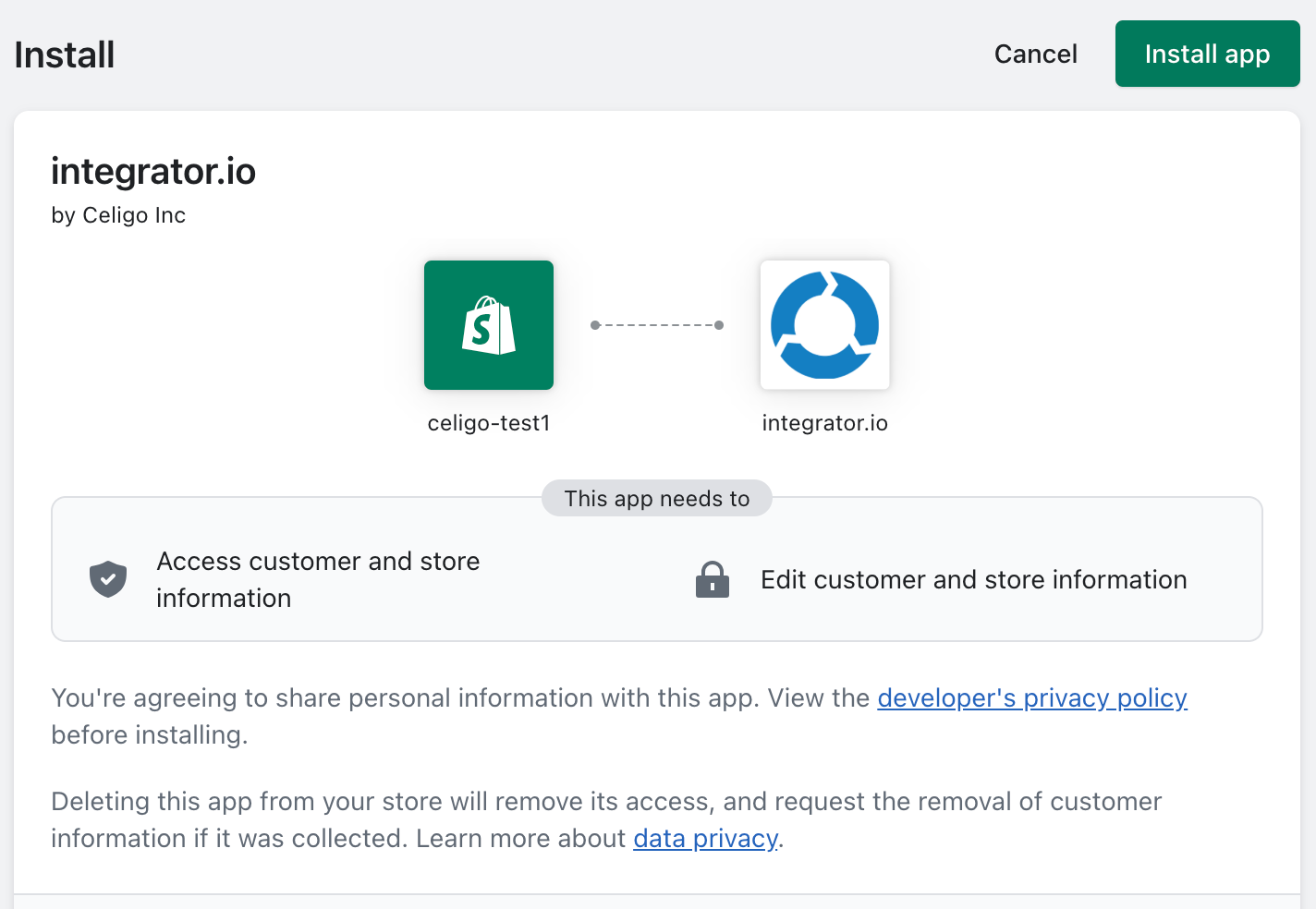

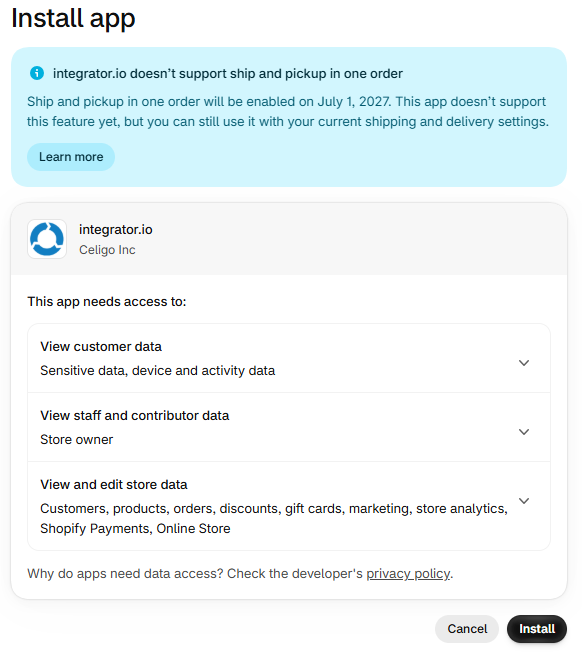

  1. Read the information and click Install app. The Celigo sign in page appears if the user is not signed in.

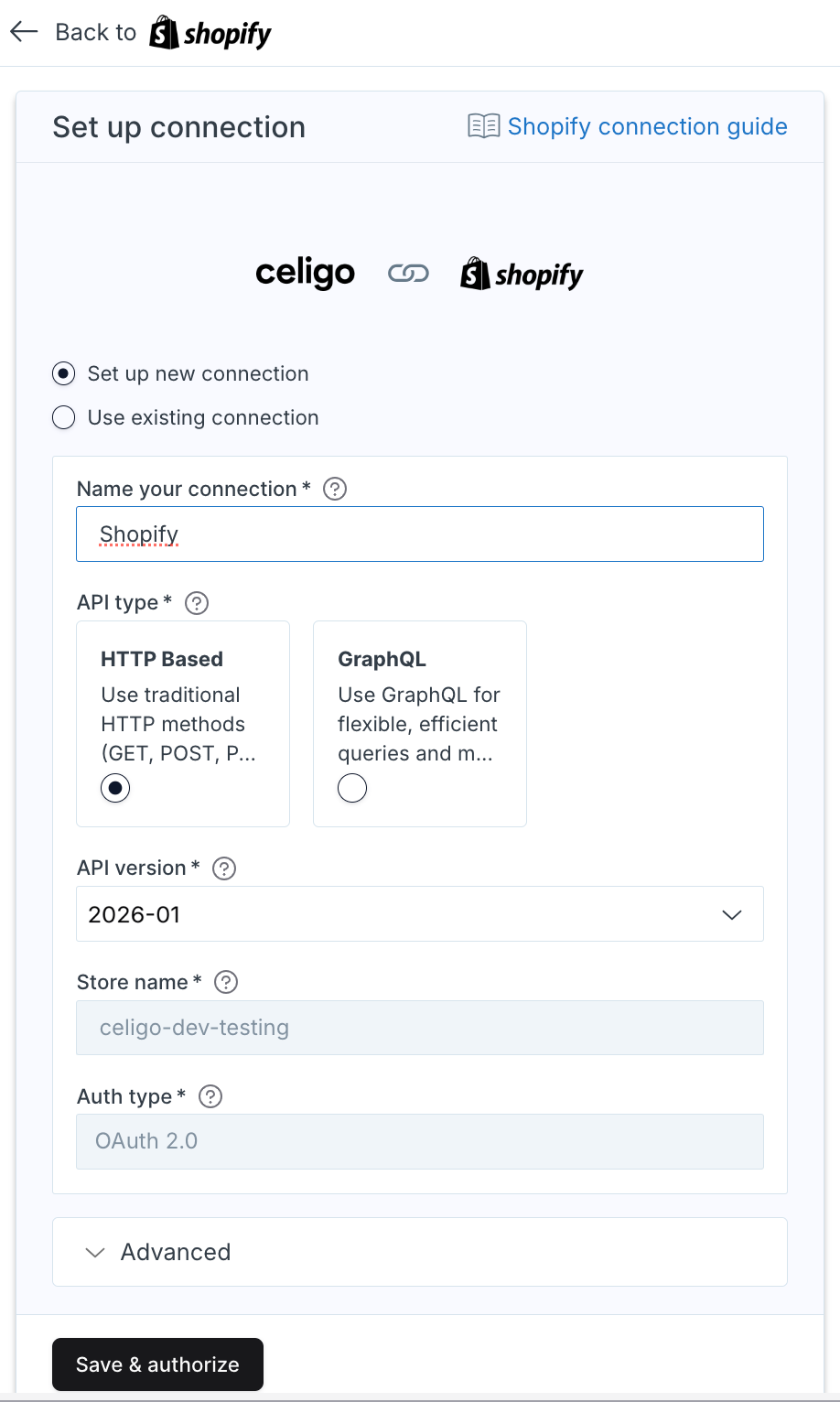

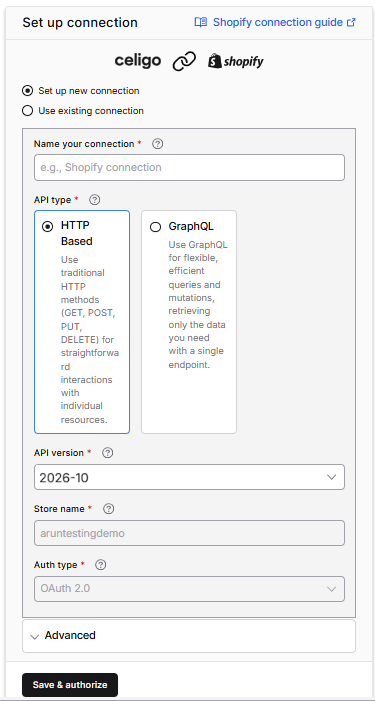

  1. Provide the credentials and click Sign in. The Set up connection page appears.

  2. Name your connection  (required): Provide a clear and distinguishable name. Throughout integrator.io imports and exports, you can choose this new connection, and a unique identifier will prove helpful later when selecting a list of connections you’ve created.

  3. API version (required): Select the Shopify API version, such as 2023-01.

  4. Store name (required): The form will automatically get the store name that was selected while configuring the app.

  5. Click Save & authorize. You will be navigated to the integrator.io > Connections dashboard page and you can see the connection Status as Online.
  1. Navigate to the integrator.io app page.
  2. Click Open app. The Set up connection page appears.

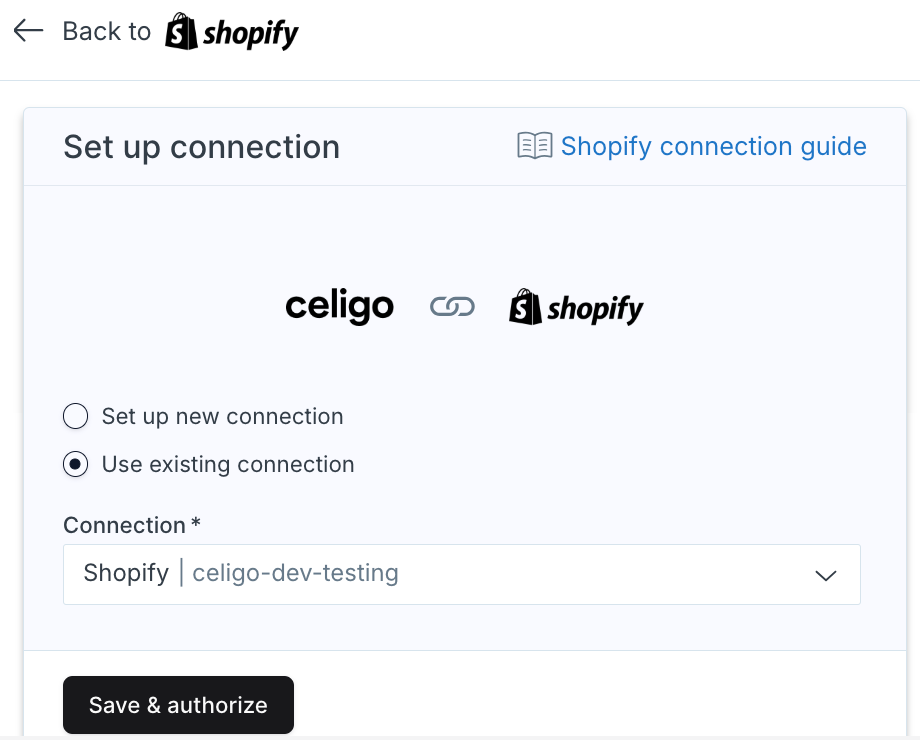

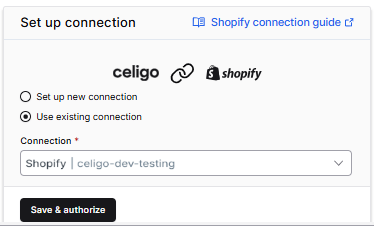

  1. Choose Use existing connection.
  2. From Connection, select the required Shopify connection.
  3. Click Save & authorize. You will be navigated to the integrator.io > Connections dashboard page and you can see the connection Status as Online.
